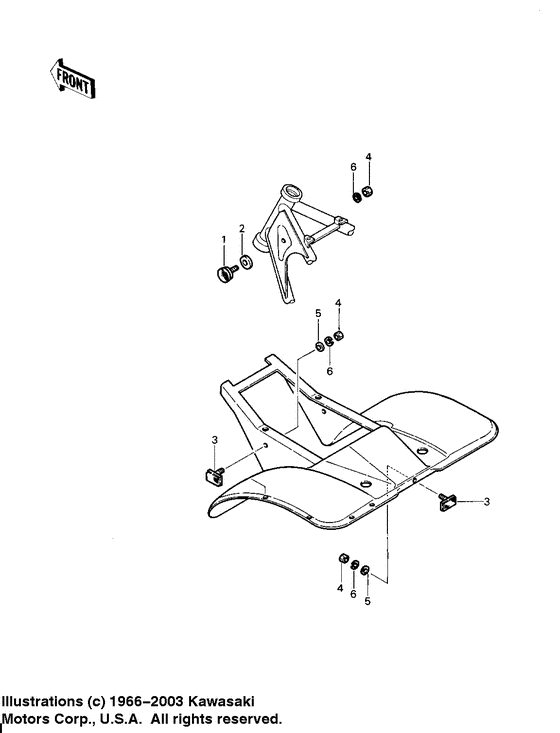

Reflectors (Canada; '81-'82 klt200-a1/a2/a3) Diagram Kawasaki KLT 200
- Model code
- KLT200-A3
- Engine Capacity
- 200
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28012016 REFLECTOR,REFLEXReflector,reflex; |
28012016 |
from US $15.71 |
||
|
2
|
2
92094-011 DAMPER RUBBER,REFLECTDamper rubber,reflect; |
92094-011 |
from US $2.65 |
||
|
3
|
3
28012-1054
Reflector-reflex,rr
Reflector-reflex,rr; |
28012-1054 |
— | ||
| replacement | |||||
|
3
|
3
28012-1088 Reflector-reflexReflector-reflex,rr; |
28012-1088 |
from US $17.58 |
||
|
4
|
4
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
4
|
4
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
5
|
5
411B0500
W-PLAIN-S
Washer plain 5mm; |
411B0500 |
— | ||
| replacements | |||||
|
5
|
5
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; |
411AA0500 |
from US $0.88 |
||
|
5
|
5
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
6
|
6
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
6
|
6
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
