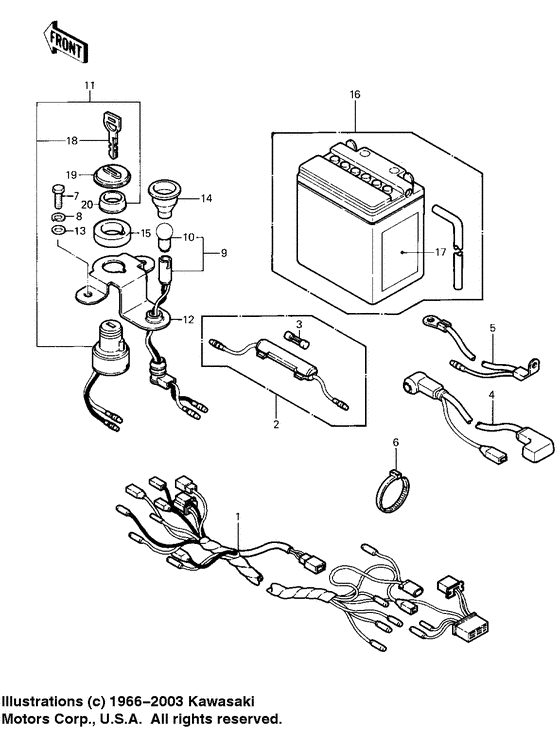

Chassis electrical equipment ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200
- Model code
- KLT200-A4
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26001-4017 HARNESS,MAINHarness,main; |
26001-4017 |
US $51.98 |
||
|
2
|
2
26004-013
FUSE ASSY
Fuse assy; |
26004-013 |
— | ||
|
3
|
3
26006005 FUSE,GLASS TUBE,6.4X2Fuse-20a; |
26006005 |
from US $3.80 |
||
|
4
|
4
26011-4005
WIRE-LEAD,LEAD
Wire-lead,lead; |
26011-4005 |
— | ||
|
5
|
5
26010052 WIRE,BATTERY GROUNDWire,battery ground; |
26010052 |
from US $16.02 |
||
|
6
|
6
92072-3505
BAND
|
92072-3505 |
— | ||
|
7
|
7
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
7
|
7
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
7
|
7
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
8
|
8
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
8
|
8
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
9
|
9
23016-1025
LAMP-ASSY,IGNITION
Lamp-assy,ignition; |
23016-1025 |
— | ||
|
10
|
10
92069-018 BULB 12V 3WBulb 12v 3w; |
92069-018 |
from US $3.90 |
||
|
11
|
11
27005-1117
SWITCH-ASSY-IGNITION
|
27005-1117 |
— | ||
|
12
|
12
32059-4001 BRKT,SWITCHBrkt,switch; |
32059-4001 |
US $15.30 |
||
|
13
|
13
92022-1565 WASHER,6.5X16X2Washer,6.5x16x2; |
92022-1565 |
from US $2.53 |
||
|
14
|
14
92059-1559
TUBE
|
92059-1559 |
— | ||
|
15
|
15
92075-4016
DAMPER IGNITION SWITH
Damper ignition swith; |
92075-4016 |
— | ||
|
16
|
16
26012-050 YUA BAT 12N10-3B |
26012-050 |
US $71.01 |
||
|
17
|
17
56040-1036
LABEL-WARNING,BATTERY
Label-warning,battery; |
56040-1036 |
— | ||
|
18
|
18
27008-1103 KEY-LOCK,BLANKKey-lock,blank; |
27008-1103 |
from US $14.57 |
||
|
19
|
19
49006-4004 BOOT |
49006-4004 |
US $4.81 |
||
|
20
|
20
27007-004
NUT,IGNITION SW LOCK
Nut,ignition sw lock; |
27007-004 |
— | ||
