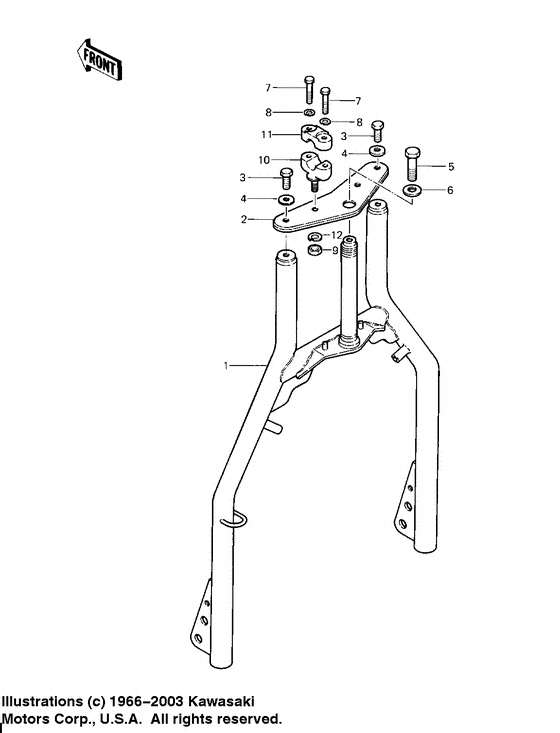

Front fork ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200
- Model code
- KLT200-A4
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44001-4009-8G FORK-FRONT,BLACKFork-front,black; |
44001-4009-8G |
US $291.60 |
||
|
2
|
2
44039-4003
HOLDER-FORK UPPER
|
44039-4003 |
— | ||
|
3
|
3
92001-1742
BOLT
|
92001-1742 |
— | ||
|
4
|
4
92022-1381
WASHER
|
92022-1381 |
— | ||
|
5
|
5
44041-072
BOLT,STEERING STEM
Bolt,steering stem; |
44041-072 |
— | ||
|
6
|
6
44043-056 WASHER,STEERING STEMWasher,steering stem; |
44043-056 |
US $12.10 |
||
|
7
|
7
110N0835 BOLT HEX HEAD 8X35 |
110N0835 |
US $2.38 |
||
|
8
|
8
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
8
|
8
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
9
|
9
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
9
|
9
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
10
|
10
46012-002-80
HOLDER,HANDLEBAR,BUFF
Holder,handlebar,buff; |
46012-002-80 |
— | ||
|
11
|
11
46012-004
HOLDER UPPER HANDLBAR
Holder upper handlbar; |
46012-004 |
— | ||
| replacement | |||||
|
11
|
11
46012-1252 HOLDER-HANDLE,UPPHolder upper handlbar; |
46012-1252 |
US $15.36 |
||
|
12
|
12
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
12
|
12
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
