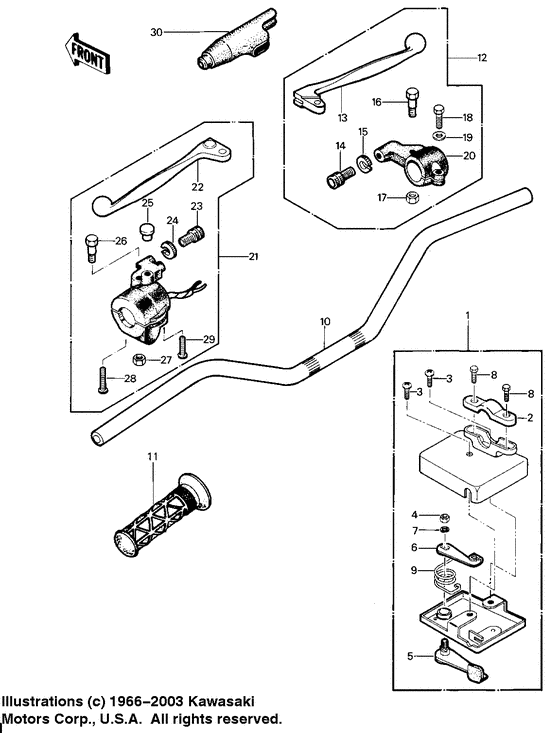

Handlebar ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200
- Model code
- KLT200-A4
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39074-4001
LEVER-ASSY-THROTTLE
|
39074-4001 |
— | ||
|
2
|
2
13091-4002
HOLDER,THROTTLE LEVER
Holder,throttle lever; |
13091-4002 |
— | ||
|
3
|
3
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
3
|
3
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
|
4
|
4
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
4
|
4
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
5
|
5
39075-4001 LEVER THROTTLE OUTER |
39075-4001 |
US $23.83 |
||
|
6
|
6
39075-4002 LEVER THROTTLE INNER |
39075-4002 |
US $5.45 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
8
|
8
92001-4011 BOLT HEX HEAD |
92001-4011 |
US $1.76 |
||
|
9
|
9
92081-4007
SPRING RETURN
|
92081-4007 |
— | ||
|
10
|
10
46003-4004
HANDLEBAR
|
46003-4004 |
— | ||
|
11
|
11
46075-4001 GRIP,RHGrip,rh; |
46075-4001 |
US $15.89 |
||
|
12
|
12
46021-025 LEVER ASSY,FRNT BRAKELever assy,frnt brake; |
46021-025 |
US $60.41 |
||
|
13
|
13
46058-004 LEVER, FRONT BRAKELever front brake; |
46058-004 |
from US $24.91 |
||
|
14
|
14
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
15
|
15
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
16
|
16
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
17
|
17
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
18
|
18
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
18
|
18
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
19
|
19
410D0600 WASHERWasher,plain,6mm; |
410D0600 |
US $3.40 |
||
| replacement | |||||
|
19
|
19
410S0600 WASHERWasher,plain,6mm; |
410S0600 |
from US $0.95 |
||
|
20
|
20
4606001121 HOLDER,FR LEVER,F.BLKHolder,fr lever,f.blk; |
4606001121 |
US $27.54 |
||
|
21
|
21
46091-4001 HOUSING-ASSY-CONTROL |
46091-4001 |
US $196.74 |
||
|
22
|
22
46092-024 LEVER,CLUTCHLever,clutch; |
46092-024 |
from US $15.77 |
||
|
23
|
23
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
24
|
24
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
25
|
25
92066-1077 PLUG,9.5X8Plug,9.5x8; |
92066-1077 |
from US $3.01 |
||
|
26
|
26
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
27
|
27
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
28
|
28
92009-1018 SCREW,PAN HEAD,5X38Screw,pan head,5x38; |
92009-1018 |
US $2.59 |
||
|
29
|
29
220B0525
SCREW-PAN-CROS,5X25
Screw-pan-cros,5x25; |
220B0525 |
— | ||
| replacement | |||||
|
29
|
29
220AA0525 SCREW-PAN-CROS,5X25Screw-pan-cros,5x25; |
220AA0525 |
from US $1.25 |
||
|
30
|
30
49006-1917
New Genuine Part
|
49006-1917 |
— | ||
