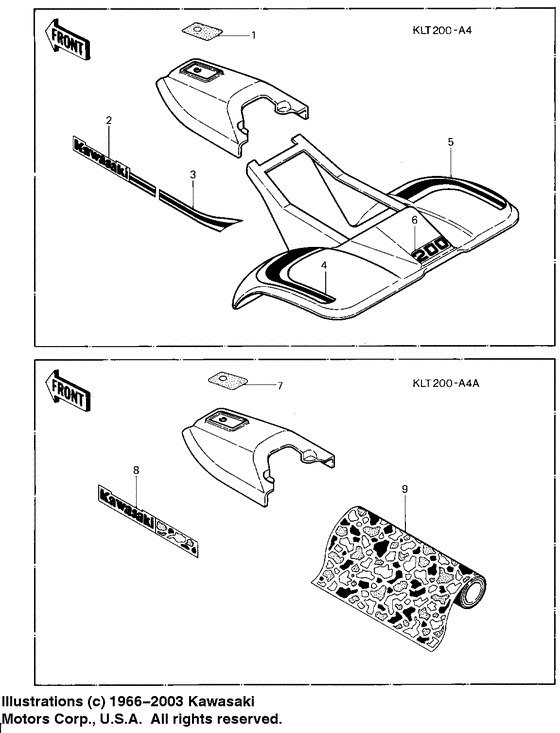

Labels Diagram Kawasaki KLT 200
- Model code
- KLT200-A4
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56030-4001
LABEL-IGNITION PLATE
|
56030-4001 |
— | ||
|
2
|
2
56014-4025
EMBLEM,KAWASAKI,L.H.
Emblem,kawasaki,l.h.; Lime green, ebony, lime green, ebony |
56014-4025 |
— | ||
|
3
|
3
56027-4085
PATTERN,LH,SIDE PANEL
Pattern,lh,side panel; Lime green, ebony, lime green, ebony |
56027-4085 |
— | ||
|
4
|
4
56027-4089
PATT.RR.FENDER,L.H.
Patt.rr.fender,l.h.; Lime green, ebony |
56027-4089 |
— | ||
|
5
|
5
56027-4090
PATT.RR.FENDER,R.H.
Patt.rr.fender,r.h.; Lime green, ebony |
56027-4090 |
— | ||
|
6
|
6
56018-4011
MARK,200 REAR
Mark,200 rear; Lime green, ebony |
56018-4011 |
— |
