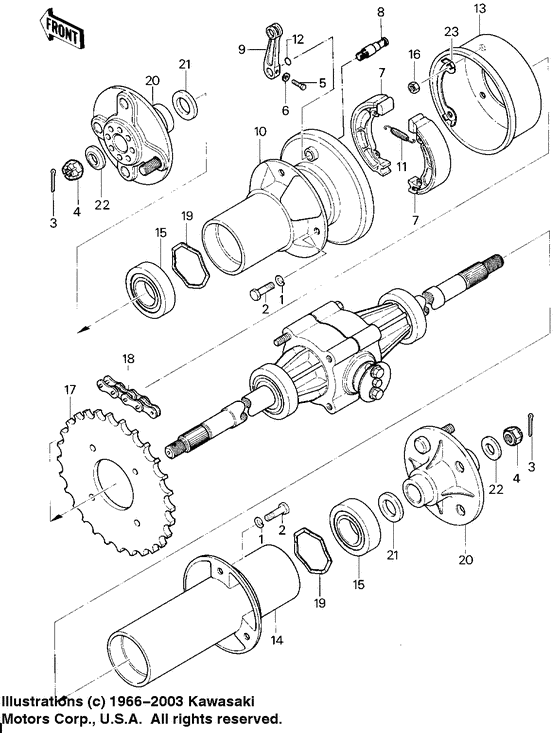

Rear brake/chain ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200
- Model code
- KLT200-A4
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
1
|
1
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
2
|
2
92001-160
BOLT
|
92001-160 |
— | ||
|
3
|
3
550D4030 PIN-COTTER,4.0X30Pin cotter 4.0x30; |
550D4030 |
from US $1.27 |
||
| replacement | |||||
|
3
|
3
550AA4030 PIN-COTTER,4.0X30Pin cotter 4.0x30; |
550AA4030 |
from US $0.94 |
||
|
4
|
4
92015-4015 NUT |
92015-4015 |
US $2.56 |
||
|
5
|
5
112G0622 BOLT-UPSET |
112G0622 |
from US $1.27 |
||
| replacement | |||||
|
5
|
5
112BA0622 BOLT-UPSET |
112BA0622 |
from US $1.61 |
||
|
6
|
6
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
6
|
6
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
7
|
7
41048-1068 SHOE-BRAKE |
41048-1068 |
from US $50.40 |
||
|
8
|
8
41050-1002 CAM SHAFT,BRAKECam shaft,brake; |
41050-1002 |
US $39.10 |
||
|
9
|
9
41053-1022 LEVER BRAKE CAM |
41053-1022 |
US $97.06 |
||
|
10
|
10
42016-4001 PANEL,REAR BRAKEPanel,rear brake; |
42016-4001 |
US $108.32 |
||
|
11
|
11
42020-004 SPRING-BRAKE SHOESpring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
12
|
12
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
13
|
13
41038-4009 DRUM,REARDrum,rear; |
41038-4009 |
US $43.07 |
||
|
14
|
14
41046-4001 HOUSING,BEARINGHousing,bearing; |
41046-4001 |
US $96.84 |
||
|
15
|
15
601A6008UU BEARINGBearing; |
601A6008UU |
from US $30.64 |
||
|
16
|
16
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
17
|
17
42041-4008 SPROCKET-HUB,50TSprocket-hub,50t; |
42041-4008 |
US $102.62 |
||
|
18
|
18
92057-4011 CHAIN,EK520SH-0,98LChain,ek520sh-0,98l; Endless |
92057-4011 |
US $386.32 |
||
|
19
|
19
92081-4013 SPRING,BEARINGSpring,bearing; |
92081-4013 |
US $4.59 |
||
|
20
|
20
49030-4001 HUB |
49030-4001 |
US $93.17 |
||
|
21
|
21
92022-4020 WASHER |
92022-4020 |
US $2.16 |
||
|
22
|
22
92022-230 WASHER,16X41X4.5Washer,steerg stm hd; |
92022-230 |
US $11.72 |
||
| replacement | |||||
|
22
|
22
92200-1273 WASHER,16X41X4.5Washer,steerg stm hd; |
92200-1273 |
from US $7.76 |
||
|
23
|
23
92022-4022 WASHER |
92022-4022 |
US $2.66 |
||
