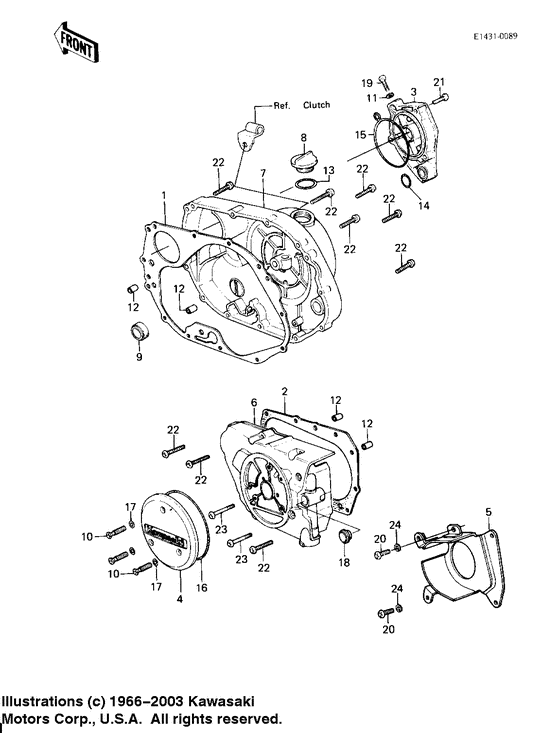

Engine covers ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200
- Model code
- KLT200-A4A
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-1235
GASKET,CLUTCH COVER
Gasket,engine cov,rh; |
11009-1235 |
— | ||
| replacement | |||||
|
1
|
1
11060-1583 GASKET,CLUTCH COVERGasket,engine cov,rh; |
11060-1583 |
US $27.09 |
||
|
2
|
2
14045-031 GASKET,GENERATOR CVRGasket,l.h engine cov; |
14045-031 |
US $22.70 |
||
| replacement | |||||
|
2
|
2
11060-1473 GASKET,GENERATOR CVRGasket,l.h engine cov; |
11060-1473 |
US $40.61 |
||
|
3
|
3
14025-1102 COVER,FILTER,F.BLACKCover,filter,f.black; |
14025-1102 |
US $53.41 |
||
|
4
|
4
14025-1239 COVER,DYNAMOCover,dynamo; |
14025-1239 |
US $49.46 |
||
|
5
|
5
14026-1052 COVER-CHAIN,BLACKCover-chain,black; |
14026-1052 |
US $67.16 |
||
|
6
|
6
14031-1067 Cover-generator |
14031-1067 |
US $215.35 |
||
|
7
|
7
14032-1097 COVER-CLUTCH,BLACKCover-clutch,black; |
14032-1097 |
US $180.11 |
||
|
8
|
8
16115-013
CAP-OIL FILLER
Plug,oil filler; |
16115-013 |
— | ||
| replacement | |||||
|
8
|
8
16115-1062 CAP-OIL FILLERPlug,oil filler; |
16115-1062 |
from US $15.36 |
||
|
9
|
9
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
10
|
10
222E0625
SCREW OVL CNTSK 6X25
|
222E0625 |
— | ||
|
11
|
11
92022-304 WASHER,PLAINWasher,plain; |
92022-304 |
from US $2.53 |
||
|
12
|
12
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
13
|
13
92055-049 O-RING,31MM"0" ring,31mm; |
92055-049 |
from US $3.37 |
||
|
14
|
14
92055-098 O RING"o" ring; |
92055-098 |
from US $6.02 |
||
|
15
|
15
92055-1048 0 RING,FILTER COVER"0" ring,filter cover; |
92055-1048 |
from US $7.78 |
||
|
16
|
16
92055-108 O RING,DYNAMO COVER"o" ring,dynamo cover; |
92055-108 |
US $10.15 |
||
|
17
|
17
92055-109 O RING,DYNAMO COVER"o" ring,dynamo cover; |
92055-109 |
from US $3.17 |
||
|
18
|
18
92066-065 PLUG |
92066-065 |
US $3.47 |
||
|
19
|
19
110B0608 BOLT HEX HEAD 6X8Bolt hex head 6x8; |
110B0608 |
US $2.20 |
||
| replacement | |||||
|
19
|
19
112AA0608 BOLT-UPSETBolt hex head 6x8; |
112AA0608 |
from US $0.94 |
||
|
20
|
20
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
20
|
20
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
|
21
|
21
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
21
|
21
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
22
|
22
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
22
|
22
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
23
|
23
220B0660 SCREW PAN HEAD 6X60Screw pan head 6x60; |
220B0660 |
from US $1.43 |
||
| replacement | |||||
|
23
|
23
220AA0660 SCREW-PAN HEAD,6X60Screw pan head 6x60; |
220AA0660 |
from US $1.24 |
||
|
24
|
24
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
24
|
24
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
