	Description	OEM Part #	Price
1	1 130G0612 BOLT-FLANGED,6X12 Bolt,flanged,6x12;	130G0612	—
	replacement
1	1 130BA0612 BOLT-FLANGED,6X12 Bolt,flanged,6x12;	130BA0612	from US $0.79
2	2 13107-4001 SHAFT	13107-4001	US $19.69
3	3 13107-4009 SHAFT	13107-4009	US $18.02
4	4 13169-4011 PLATE LOCKING	13169-4011	US $13.41
5	5 16085-4003 GEAR	16085-4003	US $23.72
6	6 16085-4004 GEAR	16085-4004	US $28.19
7	7 32099-4010 CASE-GEAR,RIGHT Case-gear,right;	32099-4010	US $80.19
8	8 92043-4009 PIN,10.1X12X14 Pin,10.1x12x14;	92043-4009	from US $3.64
9	9 32099-4009 CASE-GEAR,LEFT Case-gear,left;	32099-4009	US $80.03
10	10 41067-4009 AXLE ASSY,LH 13.45" Axle assy,lh 13.45";	41067-4009	US $86.80
11	11 41067-4008 AXLE ASSY,RH 17.24" Axle assy,rh 17.24";	41067-4008	US $86.63
12	12 41086-4006 FLANGE,AXLE Flange,axle;	41086-4006	US $25.31
13	13 463H1600 WASHER,TOOTHED,16M/M Washer,toothed,16m/m;	463H1600	US $3.87
14	14 49001-4001 NIPPLE,GREASE Nipple,grease;	49001-4001	US $1.76
15	15 601A6008UU BEARING Bearing;	601A6008UU	from US $30.64
16	16 92001-1842 BOLT,10X103 Bolt,10x103;	92001-1842	US $8.23
17	17 92015-4009 NUT	92015-4009	US $0.68
18	18 92015-4013 NUT	92015-4013	US $4.32
19	19 92022-4008 WASHER	92022-4008	US $0.68
20	20 92022-4009 WASHER	92022-4009	US $1.03
21	21 410B1000 W-PLAIN-S Washer plain 10mm;	410B1000	—
	replacement
21	21 410AA1000 W-PLAIN-S Washer plain 10mm;	410AA1000	from US $0.81
22	22 92033-4001 RING	92033-4001	US $1.37
23	23 92033-4002 RING,SNAP Ring,snap;	92033-4002	US $1.19
24	24 92028-4003 BUSHING	92028-4003	US $9.25

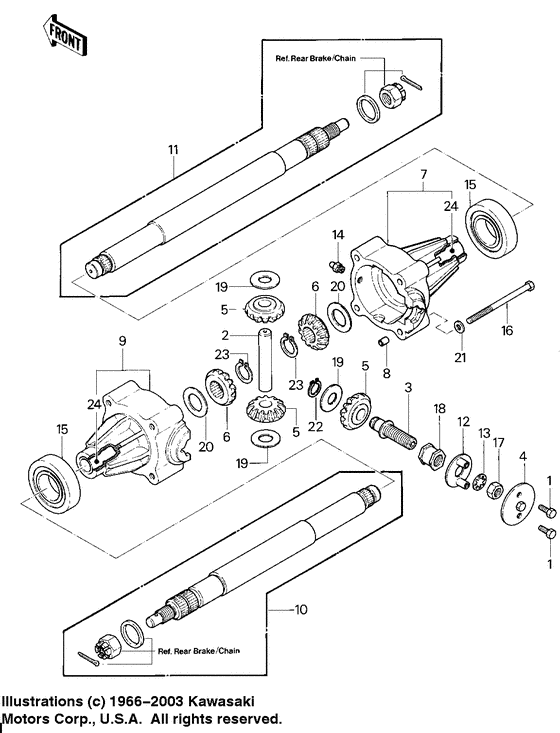

Rear axle ('83 klt200-a4/a4a) Diagram Kawasaki KLT 200 USA 10391941-683477
