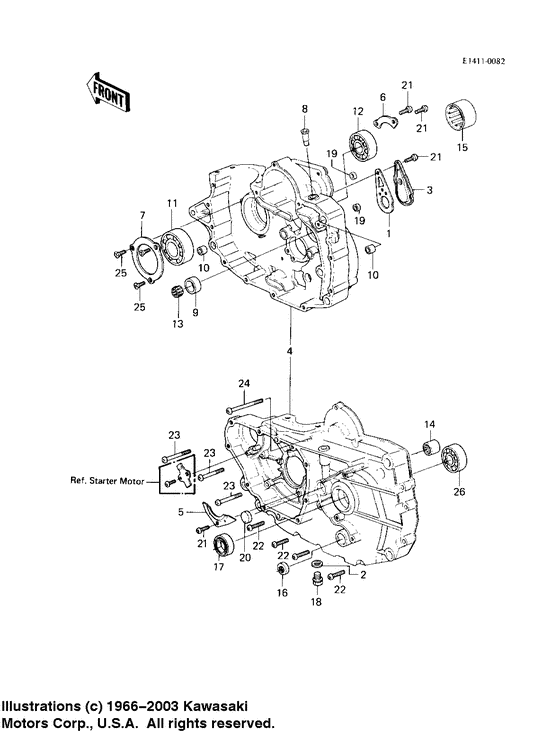

Crankcase Diagram Kawasaki KLT 200
- Model code
- KLT200-B1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16079-002
GASKET
|
16079-002 |
— | ||
|
2
|
2
92065-097 GASKET,12X22X2,DRAIN PLUGGasket,drin plug; |
92065-097 |
from US $1.61 |
||
|
3
|
3
16078-002 CAP |
16078-002 |
from US $5.47 |
||
|
4
|
4
14001-5137 SET-CRANKCASE |
14001-5137 |
US $631.94 |
||
|
5
|
5
14014035 PLATE,POSITIONINGPlate,positioning; |
14014035 |
from US $3.27 |
||
|
6
|
6
14014037 PLATE,POSITIONINGPlate,positioning; |
14014037 |
from US $3.17 |
||
|
7
|
7
14014-1004 PLATE,POSITIONINGPlate,positioning; |
14014-1004 |
from US $8.55 |
||
|
8
|
8
14067006 BREATHER JOINTBreather joint; |
14067006 |
from US $15.05 |
||
|
9
|
9
92028-132 BUSHING |
92028-132 |
from US $23.64 |
||
|
10
|
10
92042-032
PIN,DOWEL,14MM
Pin,dowel,14mm; |
92042-032 |
— | ||
| replacement | |||||
|
10
|
10
92043-1279 PIN,11.5X14X14Pin,dowel,14mm; |
92043-1279 |
from US $3.17 |
||
|
11
|
11
92045-037 BEARING,BALL,#6306Bearing,ball,#6306; |
92045-037 |
from US $33.66 |
||
|
12
|
12
92045-038 BEARING,BALL#6006Bearing,ball#6006; |
92045-038 |
from US $17.35 |
||
|
13
|
13
92046-1184 BEARING-NEEDLE |
92046-1184 |
from US $20 |
||
|
14
|
14
92046-060 BRG,NEEDLE,HMK1515BBrg,needle,hmk1515b; |
92046-060 |
from US $13.06 |
||
|
15
|
15
92046-1183 BEARING-NEEDLE,NK20/1Bearing-needle,nk20/1; |
92046-1183 |
US $35.93 |
||
|
16
|
16
92050-082 OIL SEAL,CHANGE SHAFTOil seal,change shaft; |
92050-082 |
from US $5.54 |
||
|
17
|
17
92049-1159
SEAL-OIL
Seal-oil,tc32457; |
92049-1159 |
— | ||
| replacement | |||||
|
17
|
17
92049-1577 SEAL-OILSeal-oil,tc32457; |
92049-1577 |
from US $7.92 |
||
|
18
|
18
92066-1174 PLUG,OIL DRAIN,12X15Plug,oil drain,12x15; |
92066-1174 |
from US $4.44 |
||
|
19
|
19
92066-1282 PLUG |
92066-1282 |
from US $3.96 |
||
|
20
|
20
92066-1116 PLUG |
92066-1116 |
from US $6.49 |
||
|
21
|
21
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
21
|
21
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
22
|
22
220B0630
SCREW-PAN HEAD,6X30
Screw pan head 6x30; |
220B0630 |
— | ||
| replacement | |||||
|
22
|
22
220AA0630 SCREW-PAN HEAD,6X30Screw pan head 6x30; |
220AA0630 |
from US $1.25 |
||
|
23
|
23
220B0655
SCREW-PAN HEAD,6X55
|
220B0655 |
— | ||
| replacement | |||||
|
23
|
23
220AA0655 SCREW-PAN HEAD,6X55 |
220AA0655 |
from US $1.43 |
||
|
24
|
24
220B0675
SCREW-PAN HEAD,6X75
Screw pan head 6x75; |
220B0675 |
— | ||
| replacement | |||||
|
24
|
24
220AA0675 SCREW-PAN HEAD,6X75Screw pan head 6x75; |
220AA0675 |
from US $1.40 |
||
|
25
|
25
221B0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221B0616 |
from US $0.34 |
||
| replacement | |||||
|
25
|
25
221AA0616 SCREW-CSK-CROSScrew cntsnk hd 6x16; |
221AA0616 |
from US $0.92 |
||
|
26
|
26
601B6205 BEARING BALL #6205Bearing ball #6205; |
601B6205 |
from US $13.81 |
||
