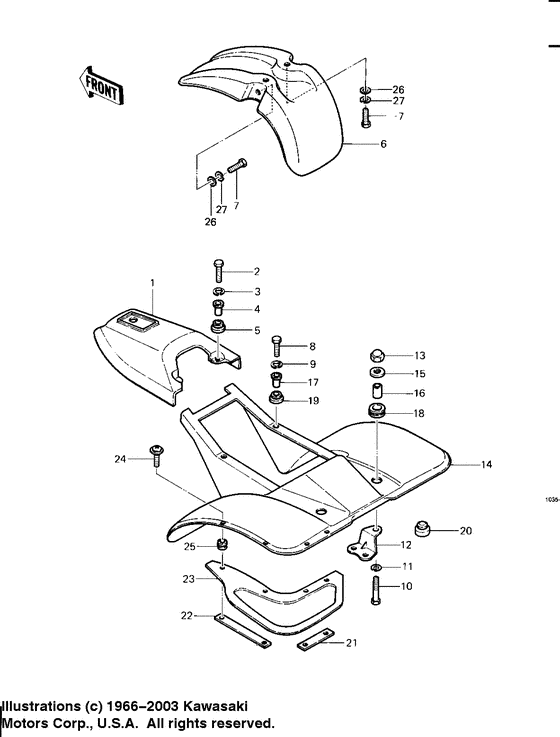

Fenders/cover Diagram Kawasaki KLT 200
- Model code
- KLT200-B1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14025-4008-6D COVER,FR,BLACKCover,fr,black; |
14025-4008-6D |
US $28.19 |
||
|
2
|
2
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
2
|
2
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
3
|
3
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
3
|
3
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
5
|
5
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
6
|
6
35004-4005-6D FENDER-FR,BLACKFender-fr,black; |
35004-4005-6D |
US $15.07 |
||
|
7
|
7
112G0618
BOLT-UPSET
|
112G0618 |
— | ||
| replacement | |||||
|
7
|
7
112BA0618 BOLT-UPSET |
112BA0618 |
from US $0.95 |
||
|
8
|
8
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
8
|
8
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
9
|
9
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
9
|
9
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
10
|
10
115G0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115G0825 |
US $1.43 |
||
| replacement | |||||
|
10
|
10
115BA0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115BA0825 |
from US $1.11 |
||
|
11
|
11
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
11
|
11
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
12
|
12
32065-4008 BRACKET |
32065-4008 |
US $5.02 |
||
|
13
|
13
323N0800 NUT,CAP,8M/MNut,cap,8m/m; |
323N0800 |
from US $2.65 |
||
|
14
|
14
35022-4002-6D FENDER-RR,BLACKFender-rr,black; |
35022-4002-6D |
US $129.11 |
||
|
15
|
15
92022-092
WASHER SEAL PLATE
92022-101 (canada); |
92022-092 |
— | ||
| replacement | |||||
|
15
|
15
92022-101 WASHER SEAL PLATE92022-101 (canada); |
92022-101 |
from US $2.49 |
||
|
16
|
16
92027-102 COLLAR |
92027-102 |
from US $1.51 |
||
|
17
|
17
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
18
|
18
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
18
|
18
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
19
|
19
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
20
|
20
92075-281 DAMPER RUBBERDamper rubber; |
92075-281 |
from US $3.64 |
||
|
21
|
21
11034-4062 BRACKET,FLAPBracket,flap; |
11034-4062 |
US $7.65 |
||
|
22
|
22
11034-4063 BRACKET,FLAPBracket,flap; |
11034-4063 |
US $8.03 |
||
|
23
|
23
35019-4004
FLAP,BLACK
|
35019-4004 |
— | ||
| replacement | |||||
|
23
|
23
35019-4004-6D
FLAP,BLACK
|
35019-4004-6D |
— | ||
|
24
|
24
92009-1289 SCREW,6X20Screw,6x20; |
92009-1289 |
from US $2.69 |
||
|
25
|
25
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
26
|
26
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
26
|
26
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
27
|
27
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
27
|
27
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
