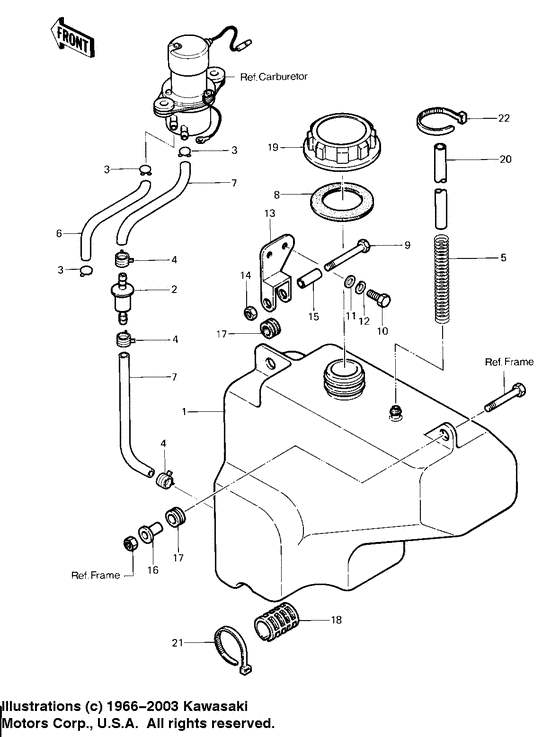

Fuel tank Diagram Kawasaki KLT 200
- Model code
- KLT200-B1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51001-4003-8L
TANK-FUEL,GRAY
Tank-fuel,gray; |
51001-4003-8L |
— | ||
|
2
|
2
49019-4001 FILTER-FUEL |
49019-4001 |
US $6.26 |
||
|
3
|
3
92037-1682 CLAMP,TUBEClamp,tube; |
92037-1682 |
from US $3.27 |
||
|
4
|
4
92037-4009 CLAMP |
92037-4009 |
US $0.36 |
||
|
5
|
5
92081-4011 SPRING |
92081-4011 |
US $1.76 |
||
|
6
|
6
92059-4030
TUBE,5.3X10.5X450
Tube,5.3x10.5x450; |
92059-4030 |
— | ||
|
7
|
7
92059-4029 TUBE,5.3X10.5X85Tube,5.3x10.5x85; |
92059-4029 |
US $2.81 |
||
|
8
|
8
11009-3020 GASKET,FUEL TANK CAPGasket,fuel tank cap; |
11009-3020 |
from US $10.14 |
||
|
9
|
9
115G0830
BOLT-SMALL-USET,8X30
Bolt-small-upset,8x30; |
115G0830 |
— | ||
| replacement | |||||
|
9
|
9
115BA0830 BOLT-SMALL-USET,8X30Bolt-small-upset,8x30; |
115BA0830 |
from US $1.09 |
||
|
10
|
10
112G0612
BOLT-UPSET,6X12
Bolt-upset,6x12; |
112G0612 |
— | ||
| replacement | |||||
|
10
|
10
112BA0612 BOLT-UP SETBolt-upset,6x12; |
112BA0612 |
from US $1.25 |
||
|
11
|
11
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
11
|
11
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
12
|
12
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
12
|
12
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
13
|
13
32052-4010 BRACKET-TANK |
32052-4010 |
US $10.69 |
||
|
14
|
14
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
15
|
15
92027-012 SPACER FUEL TANK MONTSpacer fuel tank mont; |
92027-012 |
from US $3.27 |
||
|
16
|
16
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
17
|
17
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
17
|
17
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
18
|
18
92075-084 DAMPER RUBBERDamper rubber; |
92075-084 |
from US $5.28 |
||
|
19
|
19
51049-3001 CAP,FUEL TANKCap,fuel tank; |
51049-3001 |
from US $8.55 |
||
|
20
|
20
92059-4033 TUBE |
92059-4033 |
US $1.40 |
||
|
21
|
21
92072-3505
BAND
|
92072-3505 |
— | ||
|
22
|
22
92072-4004 BAND |
92072-4004 |
US $2.30 |
||
