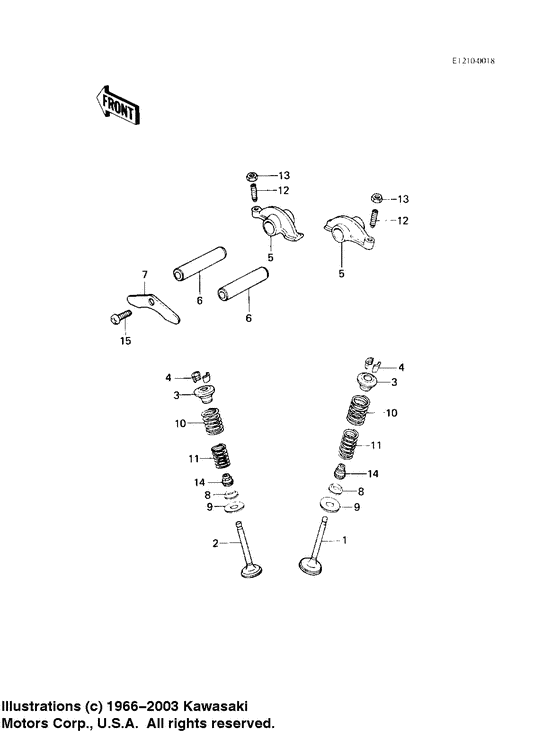

Rocker arms/valves Diagram Kawasaki KLT 200
- Model code
- KLT200-B1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12004-1006 VALVE-INTAKEValve,inlet; |
12004-1006 |
US $30.22 |
||
| replacement | |||||
|
1
|
1
12004-1123 VALVE-INTAKEValve,inlet; |
12004-1123 |
from US $29.39 |
||
|
2
|
2
12005-1005 Valve,exhaustValve,exhaust; |
12005-1005 |
from US $50.42 |
||
|
3
|
3
12009006 RETAINER,VALVE SPRINGRetainer,valve spring; |
12009006 |
from US $8.40 |
||
|
4
|
4
12011-004 SPLIT KEEPERSplit keeper; |
12011-004 |
from US $3.64 |
||
|
5
|
5
12016012 ARM-ROCKERArm,rocker; |
12016012 |
from US $52.96 |
||
| replacement | |||||
|
5
|
5
12016-0038 ARM-ROCKERロツカ Arm,rocker; |
12016-0038 |
from US $67.17 |
||
|
6
|
6
12020004 SHAFT,ROCKER ARMShaft,rocker arm; |
12020004 |
from US $14.82 |
||
|
7
|
7
14014034 PLATE,POSITIONINGPlate,positioning; |
14014034 |
from US $6.18 |
||
|
8
|
8
16007-1045 SEAT-SPRING,INNERSeat-spring,inner; |
16007-1045 |
from US $4.59 |
||
|
9
|
9
16007-1046 SEAT-SPRING,OUTERSeat-spring,outer; |
16007-1046 |
from US $4.59 |
||
|
10
|
10
12007013 SPRING,OUTER VALVESpring,outer valve; |
12007013 |
from US $11.88 |
||
|
11
|
11
12007014 SPRING,INNER VALVESpring,inner valve; |
12007014 |
from US $11.88 |
||
|
12
|
12
92013-009 SCREW,SLOTTED,ROCKERScrew,slotted,rocker; |
92013-009 |
from US $3.80 |
||
|
13
|
13
92016-061 NUT,6MMNut,rocker arm fittng; |
92016-061 |
from US $3.17 |
||
| replacement | |||||
|
13
|
13
92210-1490 NUT,6MMNut,rocker arm fittng; |
92210-1490 |
from US $2.85 |
||
|
14
|
14
92049-016 OIL SEAL,RV37129.5Oil seal,rv37129.5; |
92049-016 |
from US $11.72 |
||
|
15
|
15
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
15
|
15
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
