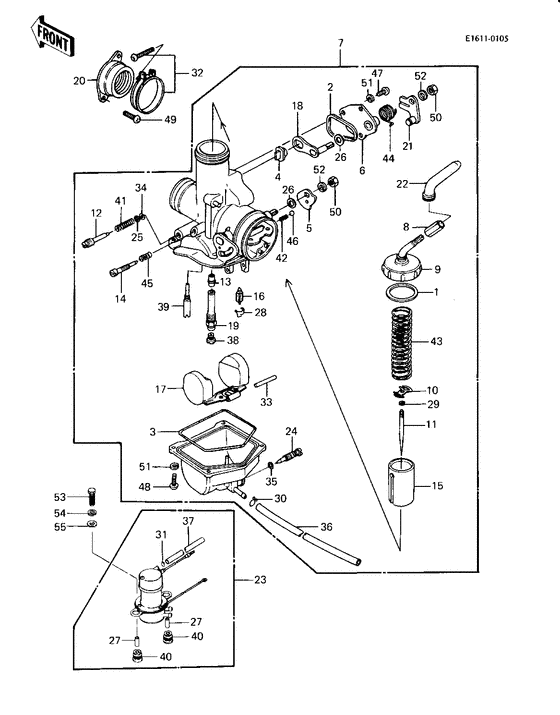

Carburetor/fuel pump ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-1278 GASKET-MIXING CHAMBER |
11009-1278 |
US $4.52 |
||
|
2
|
2
11009-1279 GASKET-FAST IDLE |
11009-1279 |
US $8.42 |
||
|
3
|
3
16019-024 O RING,FLOAT BALL"o" ring,float ball; |
16019-024 |
from US $17.27 |
||
|
4
|
4
13070-1060 GUIDE-THROTTLE |
13070-1060 |
US $12.64 |
||
|
5
|
5
13169-1492 PLATE-CHOKE CAM |
13169-1492 |
US $5.45 |
||
|
6
|
6
14025-1452 COVER-FAST IDLE |
14025-1452 |
US $16.33 |
||
|
7
|
7
16001-1911
CARBURETOR
|
16001-1911 |
— | ||
|
8
|
8
16002-1002
ADJUSTER,CABLE
Adjuster,cable; |
16002-1002 |
— | ||
|
9
|
9
16005-1014 CHAMBER-MIXING,TOPChamber-mixing,top; |
16005-1014 |
US $31.18 |
||
|
10
|
10
16007-1049 SEAT-SPRING,THROTTLESeat-spring,throttle; |
16007-1049 |
US $7.36 |
||
|
11
|
11
16009-1104 NEEDLE-JET |
16009-1104 |
US $28.60 |
||
|
12
|
12
16014-1029 SCREW,PILOT ADJUSTScrew,pilot adjust; |
16014-1029 |
from US $14.26 |
||
|
13
|
13
16017-1001 NEEDLE JET |
16017-1001 |
US $40.39 |
||
|
14
|
14
16021-1037 SCREW-THROTTLE STOP |
16021-1037 |
US $12.31 |
||
|
15
|
15
16025-1064 VALVE-THROTTLE,#2Valve-throttle,#2; |
16025-1064 |
US $92.38 |
||
|
16
|
16
16030-1007 FLOAT VALVEFloat valve; |
16030-1007 |
from US $41.28 |
||
|
17
|
17
16031-1001
FLOAT
|
16031-1001 |
— | ||
|
18
|
18
16041-1026 SHAFT-CARB,FAST IDLEShaft-carb,fast idle; |
16041-1026 |
US $15.98 |
||
|
19
|
19
16065-1053
HOLDER-NEEDLE JET
|
16065-1053 |
— | ||
|
20
|
20
16065-1064
HOLDER-CARBURETOR
|
16065-1064 |
— | ||
|
21
|
21
21083-1013 ARM-IDLE PLATE |
21083-1013 |
US $12.06 |
||
|
22
|
22
49006-1007
CAP,CABLE ADJUSTER
Cap,cable adjuster; |
49006-1007 |
— | ||
|
23
|
23
49040-1006
Pump-fuel
|
49040-1006 |
— | ||
|
24
|
24
92009-1095 SCREW,DRAIN,M6X1.0Screw,drain; |
92009-1095 |
from US $9.35 |
||
|
25
|
25
92022-1003 WASHER,PLAINWasher,plain; |
92022-1003 |
from US $2.69 |
||
|
26
|
26
92022-1308 WASHER-CHOKE CAM |
92022-1308 |
US $2.59 |
||
|
27
|
27
92027-1581 COLLAR,6X22Collar,6x22; |
92027-1581 |
US $2.50 |
||
|
28
|
28
16044-007 CLIP,FLOAT VALVEClip,float valve; |
16044-007 |
from US $6.18 |
||
|
29
|
29
92037-1039
CIRCLIP,JET NEEDLE
Circlip,jet needle; |
92037-1039 |
— | ||
|
30
|
30
92037-1142 CLAMP,TUBE,OVERFLOWClamp,tube,overflow; |
92037-1142 |
from US $2.85 |
||
|
31
|
31
92037-1395 CLAMP,FUEL HOSEClamp,fuel hose; |
92037-1395 |
US $2.66 |
||
|
32
|
32
92037-178
CLAMP,CARBURETOR HLDR
Clamp,carburetor hldr; |
92037-178 |
— | ||
| replacement | |||||
|
32
|
32
92037-077 CLAMP,HOLDERClamp,carburetor hldr; |
92037-077 |
from US $5.60 |
||
|
33
|
33
92043-1002 FLOAT PINFloat pin; |
92043-1002 |
US $5.23 |
||
|
34
|
34
92055-1002 O RING,PILOT ADJO ring,pilot adj; |
92055-1002 |
from US $2.69 |
||
|
35
|
35
92055-1053 O RING,DRAIN SCREW"o" ring,drain screw; |
92055-1053 |
from US $3.54 |
||
|
36
|
36
92059-1046 HOSE,FUEL OVERFLOWHose,fuel overflow; |
92059-1046 |
US $13.14 |
||
|
37
|
37
92059-1283 TUBE,4.5X8.5X700Tube,4.5x8.5x700; |
92059-1283 |
US $4.45 |
||
|
38
|
38
92063-1009 MAIN JET,#105Main jet,#105; Std |
92063-1009 |
from US $10.30 |
||
|
39
|
39
92064-1048
JET-PILOT #42
|
92064-1048 |
— | ||
|
40
|
40
92075-1481 DAMPER,FUEL PUMPDamper,fuel pump; |
92075-1481 |
US $6.28 |
||
|
41
|
41
92081-1002 SPRING,PIROT ADJ SCRWSpring,pirot adj scrw; |
92081-1002 |
from US $3.33 |
||
|
42
|
42
92081-1249 SPRING,SHAFT STOP |
92081-1249 |
US $5.20 |
||
| replacement | |||||
|
42
|
42
92081-1619 SPRING,SHAFT STOP |
92081-1619 |
from US $4.75 |
||
|
43
|
43
92081-1435 SPRING-THROTTLE VALVE |
92081-1435 |
US $8.28 |
||
|
44
|
44
92081-1436 SPRING-FAST IDLE |
92081-1436 |
US $3.55 |
||
|
45
|
45
92081-1437 SPRING-THROTTLE STOP |
92081-1437 |
US $3.11 |
||
|
46
|
46
92140-1007 BALL-CHOKE CAM |
92140-1007 |
US $5.65 |
||
|
47
|
47
220B0408
SCREW-PAN-CROS
Screw pan head 4x8; |
220B0408 |
— | ||
| replacement | |||||
|
47
|
47
220AA0408 SCREW-PAN-CROSScrew pan head 4x8; |
220AA0408 |
from US $0.79 |
||
|
48
|
48
220B0414
SCREW-PAN-CROS
|
220B0414 |
— | ||
| replacement | |||||
|
48
|
48
220AA0414 SCREW-PAN-CROS |
220AA0414 |
from US $1.07 |
||
|
49
|
49
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
49
|
49
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
50
|
50
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
50
|
50
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
51
|
51
461F0400
WASHER-SPRING
Washer spring 4mm; |
461F0400 |
— | ||
| replacement | |||||
|
51
|
51
461DA0400 WASHER-SPRINGWasher spring 4mm; |
461DA0400 |
from US $0.78 |
||
|
52
|
52
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
52
|
52
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
53
|
53
110R0635 BOLT 6X35Bolt 6x35; |
110R0635 |
from US $1.58 |
||
|
54
|
54
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
54
|
54
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
55
|
55
92022-1565 WASHER,6.5X16X2Washer,6.5x16x2; |
92022-1565 |
from US $2.53 |
||
