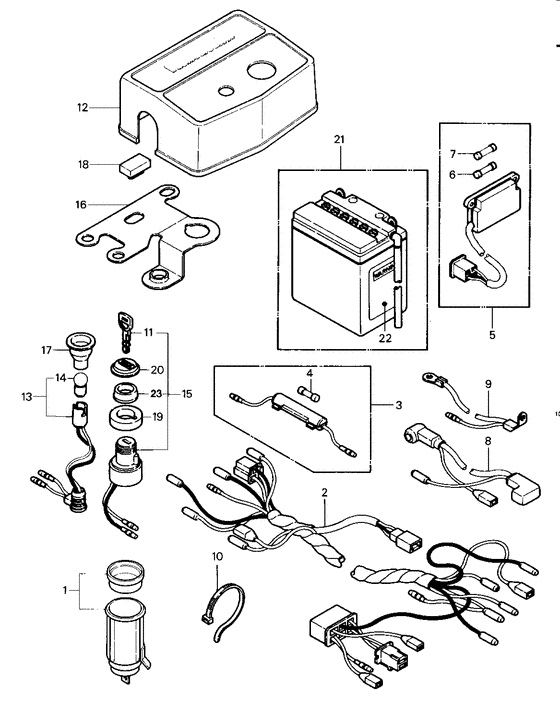

Chassis electrical equipment ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21169-4002 TERMINAL |
21169-4002 |
US $3.29 |
||
|
2
|
2
26001-4022
HARNESS,MAIN
Harness,main; -f/no. 501600, f/no. 501601- |
26001-4022 |
— | ||
|
3
|
3
26004-013
FUSE ASSY
Fuse assy; |
26004-013 |
— | ||
|
4
|
4
26006005 FUSE,GLASS TUBE,6.4X2Fuse-20a; |
26006005 |
from US $3.80 |
||
|
5
|
5
26004-1016
FUSE-ASSY,ACCESSORY
Fuse-assy,accessory; |
26004-1016 |
— | ||
|
6
|
6
26006003 FUSE,GLASS TUBE,6.4X2Fuse 10a; |
26006003 |
from US $3.48 |
||
|
7
|
7
26006-1005 FUSE,GLASS TUBE,6.4X2Fuse,30a,l=25m/m; |
26006-1005 |
from US $3.57 |
||
|
8
|
8
26011-4007
WIRE-LEAD,BATTERY
Wire-lead,battery(+); |
26011-4007 |
— | ||
| replacement | |||||
|
8
|
8
26011-1145
WIRE-LEAD,BATTERY
Wire-lead,battery(+); |
26011-1145 |
— | ||
|
9
|
9
26011-4008
WIRE-LEAD,BATTERY GRO
Wire-lead,battery gro; |
26011-4008 |
— | ||
|
10
|
10
92072-3505
BAND
|
92072-3505 |
— | ||
|
11
|
11
27008-1103 KEY-LOCK,BLANKKey-lock,blank; |
27008-1103 |
from US $14.57 |
||
|
12
|
12
14025-4023
COVER,SWITCH
Cover,switch; |
14025-4023 |
— | ||
|
13
|
13
23016-1025
LAMP-ASSY,IGNITION
Lamp-assy,ignition; |
23016-1025 |
— | ||
|
14
|
14
92069-018 BULB 12V 3WBulb 12v 3w; |
92069-018 |
from US $3.90 |
||
|
15
|
15
27005-1117
SWITCH-ASSY-IGNITION
|
27005-1117 |
— | ||
|
16
|
16
32059-4003 BRACKET-SWITCH |
32059-4003 |
US $7.92 |
||
|
17
|
17
92059-1559
TUBE
|
92059-1559 |
— | ||
|
18
|
18
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
19
|
19
92075-4016
DAMPER IGNITION SWITH
Damper ignition swith; |
92075-4016 |
— | ||
|
20
|
20
49006-4004 BOOT |
49006-4004 |
US $4.81 |
||
|
21
|
21
26012-1004
YUA BAT YB12A-A
|
26012-1004 |
— | ||
| replacements | |||||
|
21
|
21
XFFB12AA
Battery
|
XFFB12AA |
— | ||
|
21
|
21
26012-1175
No longer available
|
26012-1175 |
— | ||
|
21
|
21
26012-1061
YUA BAT YB12A-A
|
26012-1061 |
— | ||
|
22
|
22
56040-1036
LABEL-WARNING,BATTERY
Label-warning,battery; |
56040-1036 |
— | ||
|
23
|
23
27007-004
NUT,IGNITION SW LOCK
Nut,ignition sw lock; |
27007-004 |
— | ||
