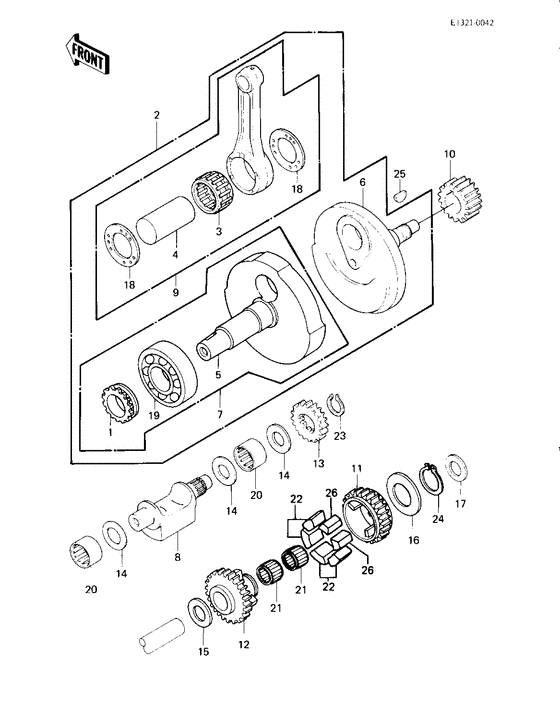

Crankshaft/balancer ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12046-1038 SPROCKET,16TSprocket,16t; |
12046-1038 |
from US $43.08 |
||
|
2
|
2
13031-1082 Crankshaft-comp |
13031-1082 |
US $511.18 |
||
|
3
|
3
13034-1013 BEARING-BIG END |
13034-1013 |
US $26.96 |
||
|
4
|
4
13035-1009 PIN-CRANK |
13035-1009 |
from US $34.26 |
||
|
5
|
5
13037-1155 CRANKSHAFT,LHCrankshaft,lh; |
13037-1155 |
US $295.83 |
||
|
6
|
6
13037-1156 CRANKSHAFT,RHCrankshaft,rh; |
13037-1156 |
US $295.83 |
||
|
7
|
7
13037-5007 CRANKSHAFT |
13037-5007 |
US $295.25 |
||
|
8
|
8
13041-1003 BALANCER |
13041-1003 |
US $110.07 |
||
|
9
|
9
13044-5029 SET-CONNECTING ROD |
13044-5029 |
US $216.77 |
||
|
10
|
10
13097-1067 GEAR-PRIMARY SPUR,21TGear-primary spur,21t; |
13097-1067 |
US $88.31 |
||
|
11
|
11
13129-1364 GEAR-TRANSMISSION SPU |
13129-1364 |
US $114.50 |
||
|
12
|
12
13129-1365 GEAR-TRANSMISSION SPU |
13129-1365 |
US $136.04 |
||
|
13
|
13
13129-1366 GEAR-TRANSMISSION SPU |
13129-1366 |
US $59.18 |
||
|
14
|
14
92022-1366 WASHER,20X36X1Washer,20x36x1; |
92022-1366 |
US $2.59 |
||
|
15
|
15
92022-1367 WASHER,16X34X1Washer,16x34x1; |
92022-1367 |
from US $2.59 |
||
|
16
|
16
92022-1390 WASHER,25.3X44X1Washer,25.3x44x1; |
92022-1390 |
from US $3.01 |
||
|
17
|
17
92022-1391 WASHER,16.3X25X1Washer,16.3x25x1; |
92022-1391 |
US $2.93 |
||
|
18
|
18
92026-107 SPACER,CHANGE SHAFTSpacer,change shaft; |
92026-107 |
US $1.76 |
||
|
19
|
19
92045-037 BEARING,BALL,#6306Bearing,ball,#6306; |
92045-037 |
from US $33.66 |
||
|
20
|
20
92046-1183 BEARING-NEEDLE,NK20/1Bearing-needle,nk20/1; |
92046-1183 |
US $35.93 |
||
|
21
|
21
92046-1053 BEARING-NEEDLE,K16X20Bearing-needle,k16x20; |
92046-1053 |
from US $16.81 |
||
|
22
|
22
92075-1595 DAMPER,IDLER GEARDamper,idler gear; |
92075-1595 |
from US $3.11 |
||
|
23
|
23
480J2000 CIRCLIP, 20MMCirclip, 20mm; |
480J2000 |
from US $1.27 |
||
|
24
|
24
480J2500 CIRCLIP-TYPE-C,25MMCirclip,25m/m; |
480J2500 |
from US $1.27 |
||
|
25
|
25
510A5100 WOODRUFF KEYWoodruff key; |
510A5100 |
from US $3.40 |
||
|
26
|
26
92075-1596 DAMPER,IDLER GEARDamper,idler gear; |
92075-1596 |
US $3.13 |
