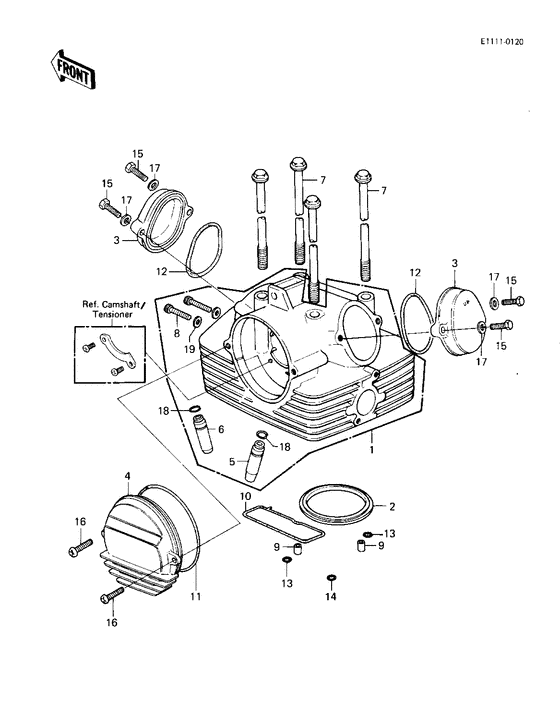

Cylinder head/covers ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11002-5029 HEAD-ASSY-CYLINDER |
11002-5029 |
US $779.26 |
||
|
2
|
2
11004-1004
GASKET-HEAD,CYLINDER
Gasket,cylinder head; |
11004-1004 |
— | ||
| replacement | |||||
|
2
|
2
11004-1257 GASKET-HEAD,CYLINDERGasket,cylinder head; |
11004-1257 |
from US $31.10 |
||
|
3
|
3
11012-1270 CAP,ROCKER,F.BLACKCap,rocker,f.black; |
11012-1270 |
US $18.32 |
||
|
4
|
4
14025-1549 COVER,CAMSHAFT,F.BLACCover,camshaft,f.blac; |
14025-1549 |
US $52.33 |
||
|
5
|
5
12013-009 GUIDE,INLET VALVEGuide,inlet valve; |
12013-009 |
from US $18.25 |
||
|
6
|
6
49002-1002 GUIDE,EXHAUST VALVEGuide,exhaust valve; |
49002-1002 |
from US $16.52 |
||
|
7
|
7
92003-220 BOLT,8X233Bolt,8x233; |
92003-220 |
from US $9.17 |
||
|
8
|
8
120P0830
BOLT-SOCKET,8X30
Bolt,socket,8x30; |
120P0830 |
— | ||
| replacement | |||||
|
8
|
8
120CA0830 BOLT-SOCKET,8X30Bolt,socket,8x30; |
120CA0830 |
from US $1.61 |
||
|
9
|
9
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
10
|
10
92055-105
O-RING
|
92055-105 |
— | ||
|
11
|
11
92055-107 O RING,99M/M"o" ring,99m/m; |
92055-107 |
from US $10.83 |
||
|
12
|
12
92055-112 O-RING,53.5MM"0" ring,53.5mm; |
92055-112 |
from US $4.80 |
||
|
13
|
13
92055-1149 RING-O,10MMRing-o,10mm; |
92055-1149 |
from US $3.80 |
||
|
14
|
14
92055-1150 O RING,10MMO ring,10mm; |
92055-1150 |
from US $5.23 |
||
|
15
|
15
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
15
|
15
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
16
|
16
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
16
|
16
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
17
|
17
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
17
|
17
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
18
|
18
92036-023 CIRCLIP-VALVECirclip-valve; |
92036-023 |
from US $0.82 |
||
|
19
|
19
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
19
|
19
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
