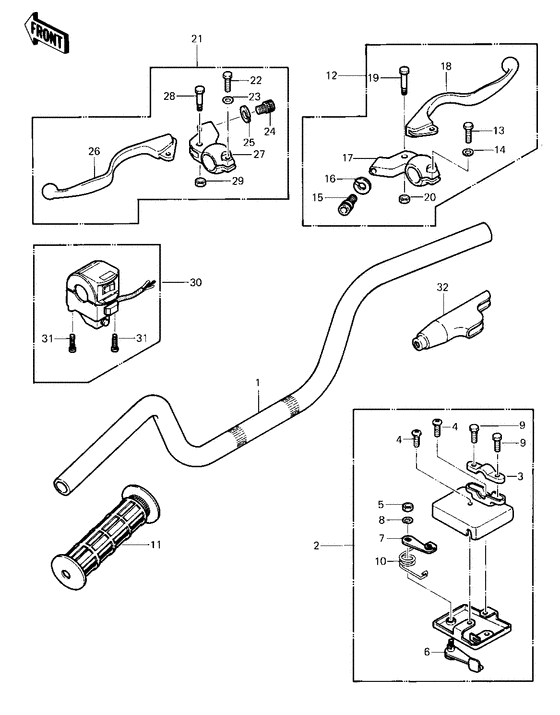

Handlebar ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46003-4004
HANDLEBAR
|
46003-4004 |
— | ||
|
2
|
2
39074-4001
LEVER-ASSY-THROTTLE
|
39074-4001 |
— | ||
|
3
|
3
13091-4002
HOLDER,THROTTLE LEVER
Holder,throttle lever; |
13091-4002 |
— | ||
|
4
|
4
220B0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220B0610 |
US $1.27 |
||
| replacement | |||||
|
4
|
4
220AA0610 SCREW-PAN HEAD,6X10Screw pan head 6x10; |
220AA0610 |
from US $0.95 |
||
|
5
|
5
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
5
|
5
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
6
|
6
39075-4001 LEVER THROTTLE OUTER |
39075-4001 |
US $23.83 |
||
|
7
|
7
39075-4002 LEVER THROTTLE INNER |
39075-4002 |
US $5.45 |
||
|
8
|
8
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
8
|
8
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
9
|
9
92001-4011 BOLT HEX HEAD |
92001-4011 |
US $1.76 |
||
|
10
|
10
92081-4007
SPRING RETURN
|
92081-4007 |
— | ||
|
11
|
11
46075-4003
GRIP
Grip,rh; |
46075-4003 |
— | ||
| replacement | |||||
|
11
|
11
46075-1056 GRIPGrip,rh; |
46075-1056 |
from US $22.75 |
||
|
12
|
12
46076-1010
LEVER ASSY,FRONT BRK
Lever assy,front brk; |
46076-1010 |
— | ||
|
13
|
13
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
13
|
13
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
14
|
14
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
14
|
14
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
15
|
15
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
16
|
16
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
17
|
17
4606001121 HOLDER,FR LEVER,F.BLKHolder,fr lever,f.blk; |
4606001121 |
US $27.54 |
||
|
18
|
18
46092-1014
LEVER,FRONT BRAKE
Lever,front brake; |
46092-1014 |
— | ||
|
19
|
19
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
20
|
20
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
21
|
21
46076-1011
Lever assy,clutch
Lever assy,clutch; |
46076-1011 |
— | ||
|
22
|
22
110N0625 BOLT-UPSET |
110N0625 |
US $35.80 |
||
| replacement | |||||
|
22
|
22
112N0625 BOLT-UPSET |
112N0625 |
from US $1.09 |
||
|
23
|
23
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
23
|
23
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
24
|
24
46055003 SCREW CABLE ADJUSTScrew cable adjust; |
46055003 |
from US $11.09 |
||
|
25
|
25
46056005 NUT-LOCKNut-lock; |
46056005 |
from US $6.02 |
||
|
26
|
26
46092-1015 LEVER,CLUTCHLever,clutch; |
46092-1015 |
US $18.32 |
||
|
27
|
27
4609401521 HOLDER,CL LEVER,F.BLKHolder,cl lever,f.blk; |
4609401521 |
US $30.65 |
||
|
28
|
28
92007-046 BOLT,HEX HEAD,5X22Bolt,hex head,5x22; |
92007-046 |
from US $4.59 |
||
|
29
|
29
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
30
|
30
46091-1393
HOUSING-ASSY-CONTROL,
|
46091-1393 |
— | ||
|
31
|
31
220B0535 SCREW-PAN-CROS |
220B0535 |
US $1.11 |
||
| replacement | |||||
|
31
|
31
220AA0535 SCREW-PAN-CROS |
220AA0535 |
from US $0.95 |
||
|
32
|
32
49006-1017 BOOTS,LEVER HOLDERBoots,lever holder; |
49006-1017 |
from US $16.47 |
||
