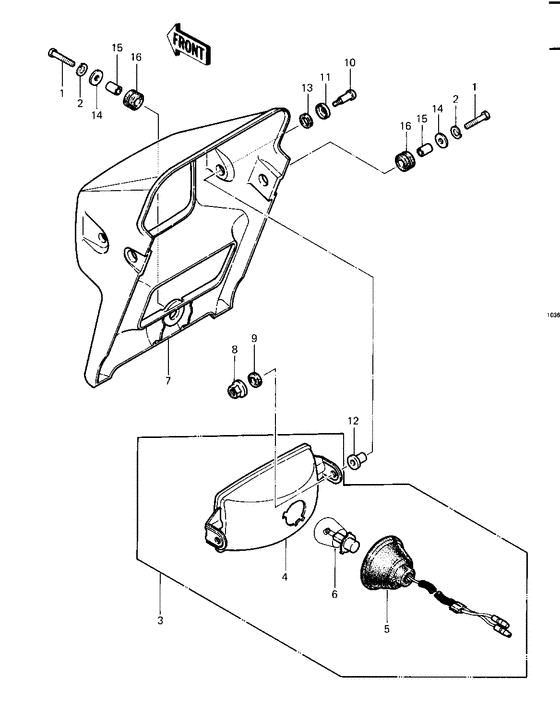

Headlight ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
112B0622
BOLT-UPSET
Bolt 6x22; |
112B0622 |
— | ||
| replacement | |||||
|
1
|
1
112BA0622 BOLT-UPSETBolt 6x22; |
112BA0622 |
from US $1.61 |
||
|
2
|
2
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
2
|
2
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
3
|
3
23004-4004 LAMP-HEAD |
23004-4004 |
US $201.55 |
||
|
4
|
4
23007-4003 LENS-COMP |
23007-4003 |
US $87.86 |
||
| replacement | |||||
|
4
|
4
23007-1120 LENS-COMP |
23007-1120 |
US $87.86 |
||
|
5
|
5
23008-4004
SOCKET H.L.
Socket h.l.; |
23008-4004 |
— | ||
|
6
|
6
92069-037 BULB 12V 35/25W |
92069-037 |
US $13.03 |
||
|
7
|
7
23005-4006-6D
BODY-COMP-HEAD LAMP,B
Body-comp-head lamp,b; |
23005-4006-6D |
— | ||
|
8
|
8
23020-023 NUT,HEAD LAMP RIM FITNut,head lamp rim fit; |
23020-023 |
US $5.23 |
||
|
9
|
9
23021012 WASHER-PLAIN,5MMWasher-plain,5mm; |
23021012 |
from US $4.12 |
||
|
10
|
10
92009-4003
SCREW,HEAD LAMP
Screw,head lamp; |
92009-4003 |
— | ||
|
11
|
11
92022-4005
WASHER,HEAD LAMP
Washer,head lamp; |
92022-4005 |
— | ||
|
12
|
12
92075-4009
DAMPER,HEAD LAMP
Damper,head lamp; |
92075-4009 |
— | ||
|
13
|
13
92075-4010
DAMPER,HEAD LAMP
Damper,head lamp; |
92075-4010 |
— | ||
|
14
|
14
92022-125
WASHER 6.5X20X1.6T
Washer 6.5x20x1.6t; |
92022-125 |
— | ||
| replacement | |||||
|
14
|
14
92200-0283 WASHER,6.5X20X1.6Washer 6.5x20x1.6t; |
92200-0283 |
from US $0.72 |
||
|
15
|
15
92027-1210 COLLAR,6.8X10X11.5LCollar,6.8x10x11.5l; |
92027-1210 |
from US $6.81 |
||
|
16
|
16
92075-1057 DAMPER |
92075-1057 |
from US $3.33 |
||
