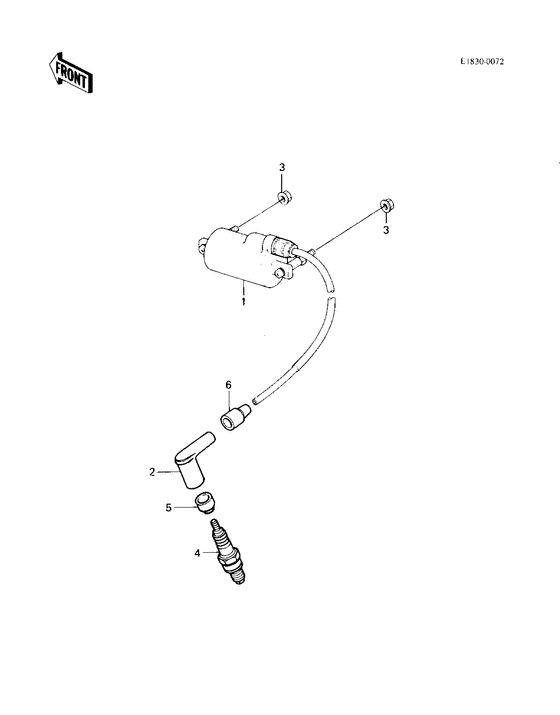

Ignition coil ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21121-1049 COIL IGNITIONCoil ignition; |
21121-1049 |
from US $99.69 |
||
|
2
|
2
21130-1007
CAP-SPARK PLUG,RTFM20
Cap-spark plug,rtfm20; |
21130-1007 |
— | ||
|
3
|
3
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
3
|
3
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
4
|
4
B7ES SPARK PLUG B7ESCanada |
B7ES |
US $16.12 |
||
|
5
|
5
21131-004 GROMMET-PLUG CAP,AGrommet-plug cap,a; |
21131-004 |
from US $8.71 |
||
|
6
|
6
21132005 GROMMET,SPARK PLG CAPGrommet,spark plg cap; |
21132005 |
from US $3.17 |
||
