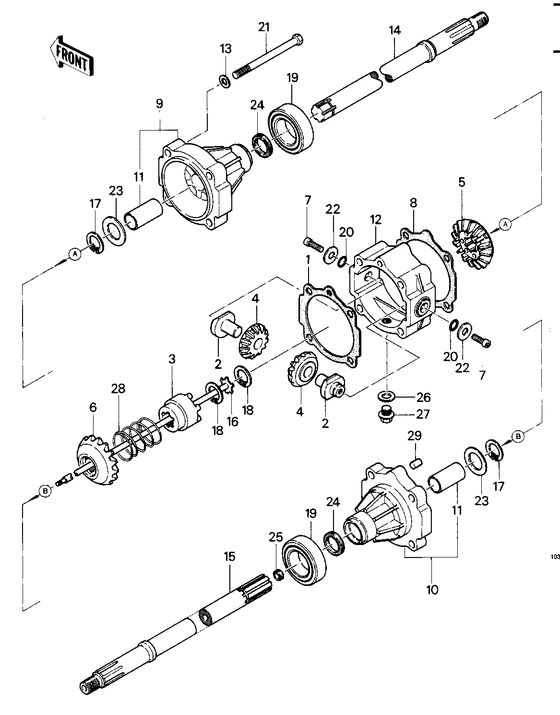

Rear axle ('83 klt200-c1) Diagram Kawasaki KLT 200
- Model code
- KLT200-C1
- Engine Capacity
- 200
- Year
- 1983
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11009-1341 GASKET,DIFFERENTIAL CGasket,differential c; |
11009-1341 |
US $5.42 |
||
|
2
|
2
13107-1042 SHAFT |
13107-1042 |
US $27.97 |
||
|
3
|
3
13139-1004 SHIFTER |
13139-1004 |
US $42.48 |
||
|
4
|
4
16085-4005 GEAR,BEVEL,10TGear,bevel,10t; |
16085-4005 |
US $53.28 |
||
|
5
|
5
16085-4006 GEAR,BEVEL,16TGear,bevel,16t; |
16085-4006 |
US $223.54 |
||
|
6
|
6
16085-4007 GEAR,BEVEL,16TGear,bevel,16t; |
16085-4007 |
US $102.17 |
||
|
7
|
7
120P0820 BOLT-SOCKETBolt-socket,8x20; |
120P0820 |
from US $1.74 |
||
| replacement | |||||
|
7
|
7
120CA0820 BOLT-SOCKETBolt-socket,8x20; |
120CA0820 |
from US $1.27 |
||
|
8
|
8
11009-1345 GASKET,DIFFERENTIAL CGasket,differential c; |
11009-1345 |
US $4.57 |
||
|
9
|
9
32099-1060 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1060 |
US $70.47 |
||
|
10
|
10
32099-1059 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1059 |
US $90.70 |
||
|
11
|
11
92028-1206 BUSHING,DIFFERENTIALBushing,differential; |
92028-1206 |
US $25.43 |
||
|
12
|
12
32099-1040 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1040 |
US $122.94 |
||
|
13
|
13
92022-1453 WASHER,10.5X18X2.5Washer,10.5x18x2.5; |
92022-1453 |
US $3.69 |
||
|
14
|
14
41068-1151 AXLE,RR,RHAxle,rr,rh; -f/no. 502600, f/no. 502601- |
41068-1151 |
US $166.63 |
||
|
15
|
15
41068-1152 AXLE,RR,LHAxle,rr,lh; -f/no. 502600, f/no. 502601- |
41068-1152 |
US $184.64 |
||
|
16
|
16
46102-4007 ROD,REAR AXLERod,rear axle; |
46102-4007 |
US $15.77 |
||
|
17
|
17
480J2200 CIRCLIP,22MMCirclip,22mm; |
480J2200 |
from US $1.27 |
||
|
18
|
18
481J1800 CIRCLIP,18MMCirclip,18mm; |
481J1800 |
from US $1.11 |
||
|
19
|
19
601A6008UU BEARINGBearing; |
601A6008UU |
from US $30.64 |
||
|
20
|
20
670B2012 O RING,12MM"o" ring,12mm; |
670B2012 |
from US $2.84 |
||
|
21
|
21
92001-1842 BOLT,10X103Bolt,10x103; |
92001-1842 |
US $8.23 |
||
|
22
|
22
92022-1452 WASHER,8.5X23X5.5Washer,8.5x23x5.5; |
92022-1452 |
US $9.13 |
||
|
23
|
23
92022-4029 WASHER,22X40X2Washer,22x40x2; |
92022-4029 |
US $2.84 |
||
|
24
|
24
92049-1048 OIL SEAL,SC22325Oil seal,sc22325; |
92049-1048 |
from US $5.70 |
||
|
25
|
25
92050-075 OIL SEALOil seal; |
92050-075 |
from US $7.13 |
||
|
26
|
26
92022-1211 WASHER,12X18X1Washer,12x18x1; |
92022-1211 |
from US $2.53 |
||
|
27
|
27
92066-1174 PLUG,OIL DRAIN,12X15Plug,oil drain,12x15; |
92066-1174 |
from US $4.44 |
||
|
28
|
28
92081-1568
SPRING,DIFFERENTIAL,L
Spring,differential,l; |
92081-1568 |
— | ||
|
29
|
29
551A1020 PIN-DOWEL,10X20Pin-dowel,10x20; |
551A1020 |
US $33.30 |
||
