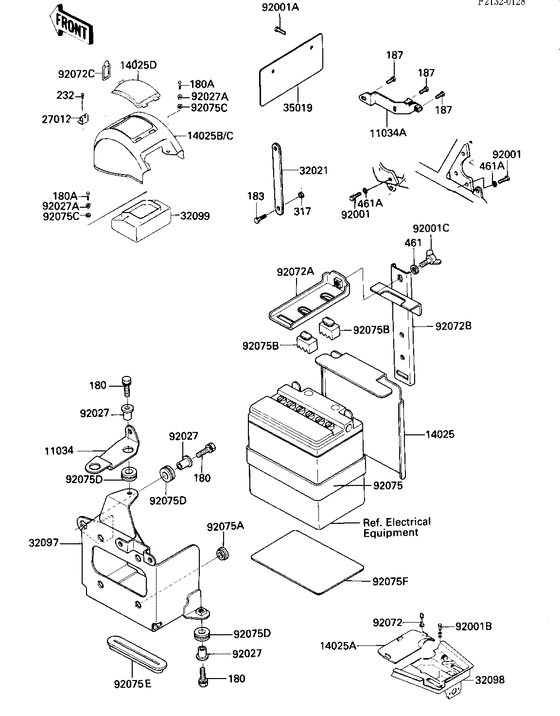

Battery case/tool case ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0620 BOLT-UPSET-WS |
180B0620 |
from US $1.11 |
||
| replacement | |||||
|
180
|
180
180AA0620 BOLT-UPSET-WS |
180AA0620 |
from US $1.09 |
||
|
180A
|
180A
180B0625
BOLT-UPSET-WS,6X25
Bolt-upset-ws,6x25; |
180B0625 |
— | ||
| replacement | |||||
|
180A
|
180A
180AA0625 BOLT-UPSET-WS,6X25Bolt-upset-ws,6x25; |
180AA0625 |
from US $1.15 |
||
|
183
|
183
183B0818
BOLT-UPSET-WS-SMALL
|
183B0818 |
— | ||
| replacement | |||||
|
183
|
183
183AA0818
BOLT-UPSET-WS-SMALL
|
183AA0818 |
— | ||
|
187
|
187
187B0614 BOLT-UPSET-WSPBolt 6x14; |
187B0614 |
US $1.11 |
||
| replacement | |||||
|
187
|
187
187AA0614 BOLT-UPSET-WSPBolt 6x14; |
187AA0614 |
from US $1.01 |
||
|
232
|
232
232B0614 SCREW-PAN-WS+- |
232B0614 |
US $8.50 |
||
|
317
|
317
317B0800 NUT-HEX-SMALLNut,8m/m; |
317B0800 |
from US $0.94 |
||
| replacement | |||||
|
317
|
317
317AA0800 NUT-HEX-SMALLNut,8m/m; |
317AA0800 |
from US $0.94 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
461A
|
461A
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461A
|
461A
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
11034
|
11034
11034-4202
BRACKET,BLACK
Bracket,black; |
11034-4202 |
— | ||
|
11034A
|
11034A
11034-4203 BRACKET,BLACKBracket,black; |
11034-4203 |
US $15.77 |
||
|
14025
|
14025
14025-4007
COVER
|
14025-4007 |
— | ||
|
14025A
|
14025A
14025-4022
COVER-TOOL CASE
|
14025-4022 |
— | ||
|
14025B
|
14025B
14025-4024-6D
COVER,FR,BLACK
Cover,fr,black; |
14025-4024-6D |
— | ||
|
14025C
|
14025C
14025-4024-8S COVER,FR,REDCover,fr,red; |
14025-4024-8S |
US $21.83 |
||
|
14025D
|
14025D
14025-4025
COVER,STORAGE
Cover,storage; |
14025-4025 |
— | ||
|
27012
|
27012
27012-4011 HOOK,BAND BLACKHook,band black; |
27012-4011 |
US $2.84 |
||
|
32021
|
32021
32021-4030 BRACKET,FRAMEBracket,frame; |
32021-4030 |
US $1.69 |
||
|
32097
|
32097
32097-1104 CASE-BATTERY |
32097-1104 |
US $72.04 |
||
|
32098
|
32098
32098-4002 CASE,TOOLCase,tool; |
32098-4002 |
US $9.83 |
||
|
32099
|
32099
32099-4011 CASE,TRUNKCase,trunk; |
32099-4011 |
US $17.33 |
||
|
35019
|
35019
35019-4006 FLAP |
35019-4006 |
US $8.10 |
||
|
92001
|
92001
92001-160
BOLT
|
92001-160 |
— | ||
|
92001A
|
92001A
92001-1763 BOLT,W/SP,6X16Bolt,w/sp,6x16; |
92001-1763 |
from US $3.01 |
||
|
92001B
|
92001B
92002-1137 BOLT,6X25Bolt,6x25; |
92002-1137 |
from US $3.17 |
||
|
92001C
|
92001C
92003-199
BOLT,CLNR ELEMENT
Bolt,clnr element; |
92003-199 |
— | ||
|
92027
|
92027
92027-1045 COLLAR |
92027-1045 |
from US $3.33 |
||
|
92027A
|
92027A
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92072
|
92072
92072-077
BAND,HEAD LAMP
Band,head lamp; |
92072-077 |
— | ||
|
92072A
|
92072A
92072-1159 BAND |
92072-1159 |
US $3.06 |
||
|
92072B
|
92072B
92072-1165 BAND,BATTERYBand,battery; |
92072-1165 |
US $12.69 |
||
|
92072C
|
92072C
92072-4008
BAND
|
92072-4008 |
— | ||
|
92075
|
92075
32103023
MAT-BATTERY SIDE
Mat-battery side; |
32103023 |
— | ||
|
92075A
|
92075A
92075-078 DAMPER RUBBERDamper rubber; |
92075-078 |
from US $3.33 |
||
|
92075B
|
92075B
92075-1007 DAMPER,SEATDamper,seat; |
92075-1007 |
from US $5.20 |
||
|
92075C
|
92075C
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
92075D
|
92075D
92075-277 DAMPER RUBBERDamper rubber; |
92075-277 |
from US $3.60 |
||
|
92075E
|
92075E
92075-280 DAMPER RUBBERDamper rubber; |
92075-280 |
US $4.12 |
||
|
92075F
|
92075F
92075-4019
DAMPER,BATTRY CASE
Damper,battry case; |
92075-4019 |
— | ||
