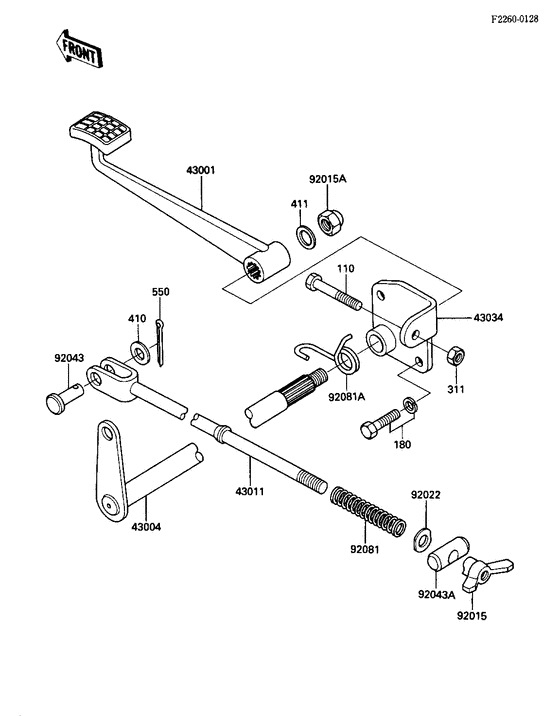

Brake pedal ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
110
|
110
112G0625
BOLT-UPSET,6X25
|
112G0625 |
— | ||
| replacement | |||||
|
110
|
110
112BA0625 BOLT-UPSET,6X25 |
112BA0625 |
from US $1.07 |
||
|
180
|
180
180B0614
BOLT-UPSET-WS
Bolt-upset-ws,6x14; |
180B0614 |
— | ||
| replacement | |||||
|
180
|
180
180AA0614 BOLT-UPSET-WSBolt-upset-ws,6x14; |
180AA0614 |
from US $1.09 |
||
|
311
|
311
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
311
|
311
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
410
|
410
410B0600
WASHER-PLAIN-SMALL
Washer plain 6mm; |
410B0600 |
— | ||
| replacement | |||||
|
410
|
410
410AA0600 WASHER-PLAIN-SMALLWasher plain 6mm; |
410AA0600 |
from US $0.79 |
||
|
411
|
411
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
550
|
550
550D2015
PIN-COTTER,2.0X15
Pin cotter 2.0x15; |
550D2015 |
— | ||
| replacement | |||||
|
550
|
550
550AA2015 PIN-COTTER,2.0X15Pin cotter 2.0x15; |
550AA2015 |
from US $0.63 |
||
|
43001
|
43001
43001-4014 LEVER-BRAKE,PEDALLever-brake,pedal; |
43001-4014 |
US $61.54 |
||
|
43004
|
43004
43004-4001
SHAFT-BRAKE
|
43004-4001 |
— | ||
|
43011
|
43011
43011-4005
ROD-BRAKE
|
43011-4005 |
— | ||
|
43034
|
43034
43034-4001
HOLDER-BRAKE
|
43034-4001 |
— | ||
|
92015
|
92015
92015-4004 NUT,WING,6M/MNut,wing,6m/m; |
92015-4004 |
from US $4.28 |
||
|
92015A
|
92015A
92020-003 NUT SHOCK ABSORBERNut shock absorber; |
92020-003 |
from US $3.80 |
||
|
92022
|
92022
92022-4003 WASHER, BRAKE RODWasher, brake rod; |
92022-4003 |
US $0.38 |
||
|
92043
|
92043
92043-064
PIN-BRAKE ROD FITTING
Pin-brake rod fitting; |
92043-064 |
— | ||
| replacement | |||||
|
92043
|
92043
92043-125 PINPin-brake rod fitting; |
92043-125 |
from US $3.96 |
||
|
92043A
|
92043A
92043-065 PIN-BRAKE RODPin-brake rod; |
92043-065 |
from US $3.33 |
||
|
92081
|
92081
43012001 SPRING,BRAKE RODSpring,brake rod; |
43012001 |
from US $3.33 |
||
|
92081A
|
92081A
92081-1337
SPRING,BRAKE PEDAL
Spring,brake pedal; |
92081-1337 |
— | ||
