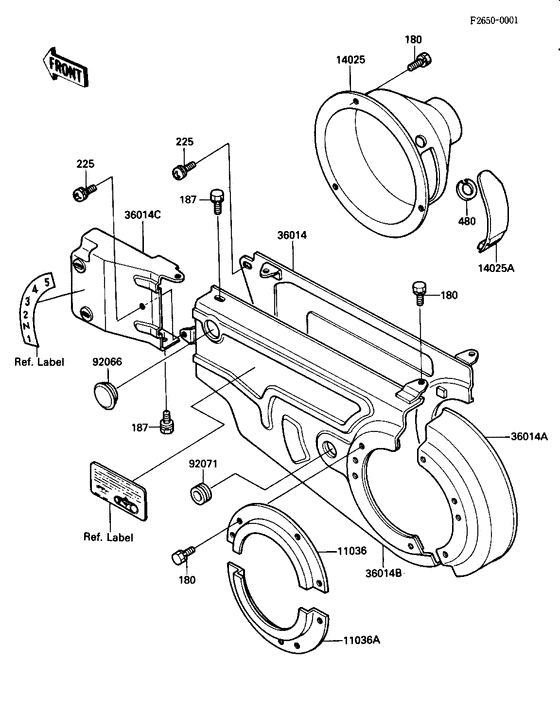

Chain case ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0612 BOLT-UPSET-WSBolt 6x12; |
180B0612 |
from US $1.11 |
||
| replacement | |||||
|
180
|
180
180AA0612 BOLT-UPSET-WSBolt 6x12; |
180AA0612 |
from US $1.24 |
||
|
187
|
187
187B0614 BOLT-UPSET-WSPBolt 6x14; |
187B0614 |
US $1.11 |
||
| replacement | |||||
|
187
|
187
187AA0614 BOLT-UPSET-WSPBolt 6x14; |
187AA0614 |
from US $1.01 |
||
|
225
|
225
225B0612 SCREW-PAN-WSP-CROS,6X |
225B0612 |
from US $1.43 |
||
| replacement | |||||
|
225
|
225
225AA0612 SCREW-PAN-WSP-CROS,6X |
225AA0612 |
from US $1.24 |
||
|
480
|
480
480J2000 CIRCLIP, 20MMCirclip, 20mm; |
480J2000 |
from US $1.27 |
||
|
11036
|
11036
11036-1454 BRACKET,LARGEBracket,large; |
11036-1454 |
US $15.35 |
||
|
11036A
|
11036A
11036-1455 BRACKET,SMALLBracket,small; |
11036-1455 |
US $10.24 |
||
|
14025
|
14025
14025-4009 COVER,DIFFERENTIALCover,differential; |
14025-4009 |
US $50.99 |
||
|
14025A
|
14025A
14025-4010
COVER,DIFFERENTIAL
Cover,differential; |
14025-4010 |
— | ||
|
36014
|
36014
36014-1041
CASE-CHAIN,INNER
Case-chain,inner; |
36014-1041 |
— | ||
|
36014A
|
36014A
36014-1059 CASE-CHAIN,RRCase-chain,rr; |
36014-1059 |
US $53.95 |
||
|
36014B
|
36014B
36014-1060 CASE-CHAIN,FRCase-chain,fr; |
36014-1060 |
US $115.16 |
||
|
36014C
|
36014C
36014-4011
CASE CHAIN,FR
Case chain,fr; |
36014-4011 |
— | ||
|
92066
|
92066
92074-004
PLUG CHAIN CASE
Plug chain case; |
92074-004 |
— | ||
|
92071
|
92071
92071-012 GROMMET HARNESS 22MM |
92071-012 |
from US $3.27 |
||
