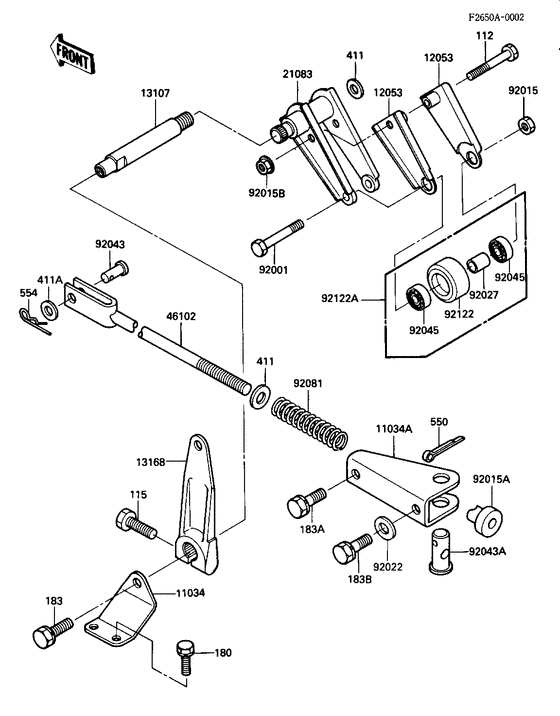

Chain tensioner ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112G0645
BOLT-UPSET
|
112G0645 |
— | ||
|
115
|
115
115G0835 BOLT,SMALL UPSETBolt,small upset; |
115G0835 |
from US $1.58 |
||
| replacement | |||||
|
115
|
115
115BA0835 BOLT,SMALL UPSETBolt,small upset; |
115BA0835 |
from US $1.09 |
||
|
180
|
180
180B0614
BOLT-UPSET-WS
Bolt-upset-ws,6x14; |
180B0614 |
— | ||
| replacement | |||||
|
180
|
180
180AA0614 BOLT-UPSET-WSBolt-upset-ws,6x14; |
180AA0614 |
from US $1.09 |
||
|
183
|
183
183B0816 BOLT-UPSET-WS-SMALL |
183B0816 |
US $1.11 |
||
| replacement | |||||
|
183
|
183
183AA0816 BOLT-UPSET-WS-SMALL |
183AA0816 |
US $1.01 |
||
|
183A
|
183A
183B0818
BOLT-UPSET-WS-SMALL
|
183B0818 |
— | ||
| replacement | |||||
|
183A
|
183A
183AA0818
BOLT-UPSET-WS-SMALL
|
183AA0818 |
— | ||
|
183B
|
183B
183B0825
Bolt-upset-ws-small
|
183B0825 |
— | ||
| replacement | |||||
|
183B
|
183B
183AA0825
Bolt-upset-ws-small
|
183AA0825 |
— | ||
|
411
|
411
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
411
|
411
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
411A
|
411A
411B1200 WASHER PLAIN 12MMWasher plain 12mm; |
411B1200 |
from US $1.26 |
||
| replacement | |||||
|
411A
|
411A
411AA1200 WASHER-PLAIN,12MMWasher plain 12mm; |
411AA1200 |
from US $0.63 |
||
|
550
|
550
550D3230 PIN,COTTERPin,cotter; |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA3230 PIN,COTTERPin,cotter; |
550AA3230 |
from US $0.94 |
||
|
554
|
554
554A1200 PIN,SNAP,12M/MPin,snap,12m/m; |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
554
|
554
554DA1200 PIN,SNAP,12M/MPin,snap,12m/m; |
554DA1200 |
from US $2.17 |
||
|
11034
|
11034
11034-4060 BRACKET,LEVER TENSIONBracket,lever tension; |
11034-4060 |
US $14.04 |
||
|
11034A
|
11034A
11034-4061 BRACKET,CHAIN ADJUSTBracket,chain adjust; |
11034-4061 |
US $30.80 |
||
|
12053
|
12053
12053-4002 GUIDE-CHAIN |
12053-4002 |
US $18.85 |
||
|
13107
|
13107
13107-4008
SHAFT,L=90
Shaft,l=90; |
13107-4008 |
— | ||
|
13168
|
13168
13168-1219 LEVER |
13168-1219 |
US $58.90 |
||
|
21083
|
21083
21083-1051 ARM |
21083-1051 |
US $90.70 |
||
|
46102
|
46102
46102-4001 ROD,CHAIN TENSIONERRod,chain tensioner; |
46102-4001 |
US $32.60 |
||
|
92001
|
92001
92001-4008 BOLT,HEX HEAD,8X45Bolt,hex head,8x45; |
92001-4008 |
US $4.99 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92015-4008 NUT,BRAKE ROD ADJUSTGNut,brake rod adjustg; |
92015-4008 |
US $12.44 |
||
|
92015B
|
92015B
92019-008 NUT |
92019-008 |
from US $2.53 |
||
|
92022
|
92022
92022-1196 WASHER,12.4X28X4.5Washer,12.4x28x4.5; |
92022-1196 |
from US $3.01 |
||
|
92027
|
92027
92027-4007
SPACER,CHN GDE ROLLER
Spacer,chn gde roller; |
92027-4007 |
— | ||
|
92043
|
92043
92043-4004 PIN,12X22Pin,12x22; |
92043-4004 |
US $7.38 |
||
|
92043A
|
92043A
92043-4005 PIN,18X33Pin,18x33; |
92043-4005 |
US $15.39 |
||
|
92045
|
92045
92045-1009 BEARING,BALLBearing,ball; |
92045-1009 |
from US $24.98 |
||
|
92081
|
92081
92081-1287 SPRING,14X20Spring,14x20; |
92081-1287 |
US $5.42 |
||
|
92122
|
92122
92122-4003
92122-4004
92122-4004 (canada); |
92122-4003 |
— | ||
| replacement | |||||
|
92122
|
92122
92122-4004
ROLLER,CHAIN ADJUST
92122-4004 (canada); |
92122-4004 |
— | ||
|
92122A
|
92122A
92122-4004
ROLLER,CHAIN ADJUST
Roller,chain adjust; |
92122-4004 |
— | ||
