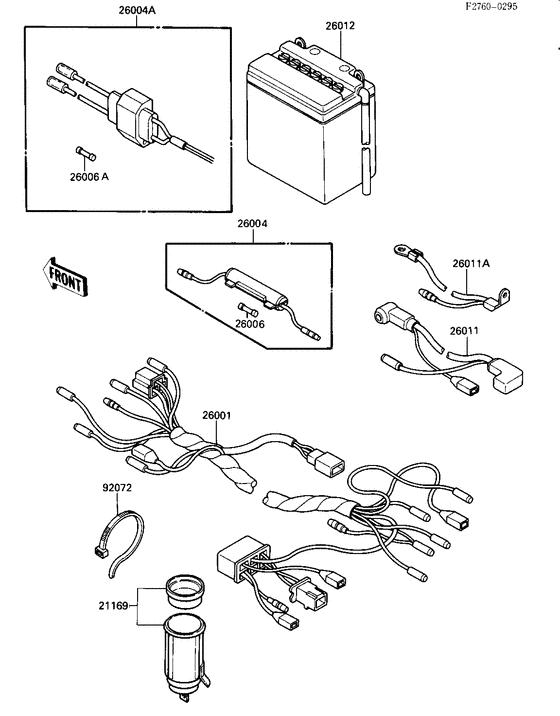

Chassis electrical equipment ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21169
|
21169
21169-4002 TERMINAL |
21169-4002 |
US $3.29 |
||
|
26001
|
26001
26001-4028
HARNESS,MAIN
Harness,main; |
26001-4028 |
— | ||
|
26004
|
26004
26004-013
FUSE ASSY
Fuse assy; |
26004-013 |
— | ||
|
26004A
|
26004A
26004-1016
FUSE-ASSY,ACCESSORY
Fuse-assy,accessory; |
26004-1016 |
— | ||
|
26006
|
26006
26006005 FUSE,GLASS TUBE,6.4X2Fuse-20a; |
26006005 |
from US $3.80 |
||
|
26006A
|
26006A
26006-1002 FUSE,GLASS TUBE,6.4X3Fuse,10a,l=30m/m; |
26006-1002 |
from US $3.33 |
||
|
26011
|
26011
26011-4007
WIRE-LEAD,BATTERY
Wire-lead,battery(+); |
26011-4007 |
— | ||
| replacement | |||||
|
26011
|
26011
26011-1145
WIRE-LEAD,BATTERY
Wire-lead,battery(+); |
26011-1145 |
— | ||
|
26011A
|
26011A
26011-4008
WIRE-LEAD,BATTERY GRO
Wire-lead,battery gro; |
26011-4008 |
— | ||
|
26012
|
26012
26012-1109
YUA BAT YB10L-B
|
26012-1109 |
— | ||
|
92072
|
92072
92072-3505
BAND
|
92072-3505 |
— | ||
