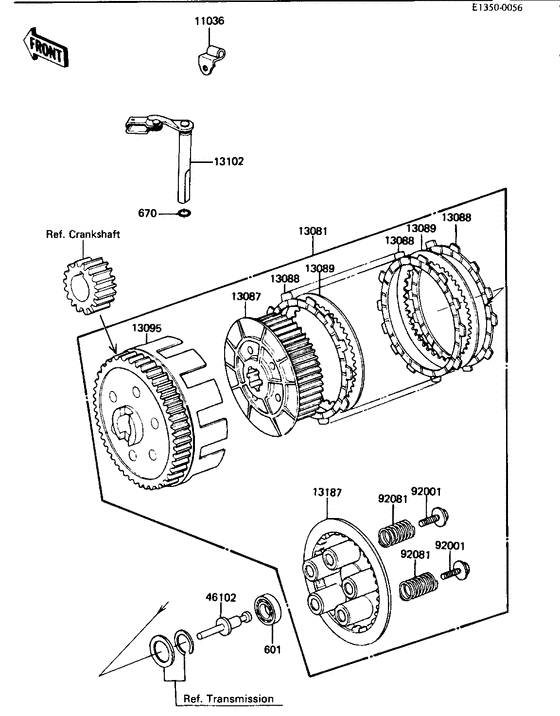

Clutch ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
601
|
601
92045-1235 BEARING-BALL (12X28X8) |
92045-1235 |
from US $16.42 |
||
|
670
|
670
670B1509 O RING,9MM"o" ring,9mm; |
670B1509 |
from US $2.53 |
||
|
11036
|
11036
11045-1081 BRACKET,CLUTCH CABLEBracket,clutch cable; |
11045-1081 |
from US $7.96 |
||
|
13081
|
13081
13081-1068 CLUTCH-ASSY |
13081-1068 |
US $552.17 |
||
|
13087
|
13087
13087-1001
HUB,CLUTCH
Hub,clutch; |
13087-1001 |
— | ||
|
13088
|
13088
13088-1008 PLATE-FRICTIONPlate,clutch friction; |
13088-1008 |
US $12.06 |
||
| replacement | |||||
|
13088
|
13088
13088-1057 PLATE-FRICTIONPlate,clutch friction; |
13088-1057 |
from US $15.71 |
||
|
13089
|
13089
13089-013 PLATE CLUTCH STEELPlate clutch steel; |
13089-013 |
from US $11.09 |
||
|
13095
|
13095
13095-1015 HOUSING,CLUTCHHousing,clutch; |
13095-1015 |
US $412.70 |
||
|
13102
|
13102
13102-1011 RELEASE,CLUTCHRelease,clutch; |
13102-1011 |
US $46.44 |
||
|
13187
|
13187
13187-1008 PLATE-CLUTCH OPERATINPlate-clutch operatin; |
13187-1008 |
US $72.25 |
||
| replacement | |||||
|
13187
|
13187
13187-1059 PLATE-CLUTCH OPERATINPlate-clutch operatin; |
13187-1059 |
from US $72.25 |
||
|
46102
|
46102
46102-1033 ROD,CLUTCH PUSHRod,clutch push; |
46102-1033 |
US $20.59 |
||
|
92001
|
92001
92001-1576 BOLT,6X20Bolt,clutch spring,6x; |
92001-1576 |
from US $3.96 |
||
| replacement | |||||
|
92001
|
92001
92153-1599 BOLT,6X20Bolt,clutch spring,6x; |
92153-1599 |
from US $0.79 |
||
|
92081
|
92081
92081-083 SPRING-CLUTCHSpring-clutch; |
92081-083 |
from US $5.07 |
||
