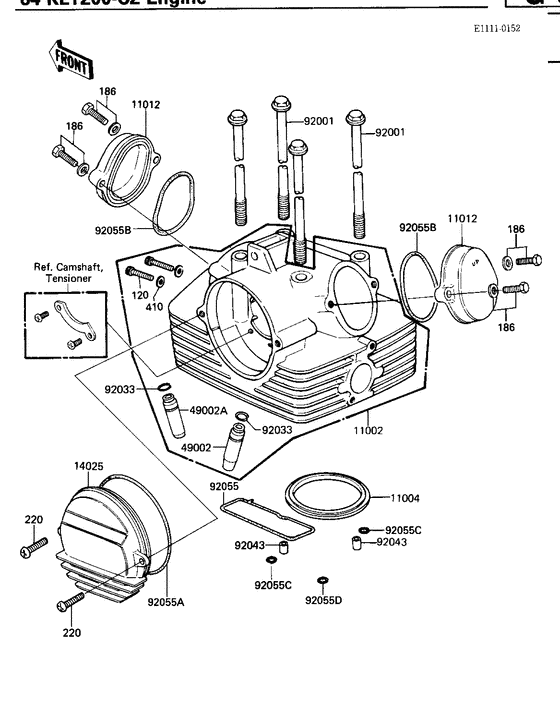

Cylinder head/covers ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
120
|
120
120Z0830 BOLT-SOCKET |
120Z0830 |
US $2.75 |
||
|
186
|
186
186Y0625 BOLT-UPSET-WP |
186Y0625 |
US $29.90 |
||
| replacement | |||||
|
186
|
186
186BD0625 BOLT-UPSET-WP |
186BD0625 |
US $2.99 |
||
|
220
|
220
220X0616 SCREW-PAN-CROS |
220X0616 |
from US $1.27 |
||
| replacement | |||||
|
220
|
220
220AD0616 SCREW-PAN-CROS |
220AD0616 |
from US $0.88 |
||
|
410
|
410
410B0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410B0800 |
US $0.79 |
||
| replacement | |||||
|
410
|
410
410AA0800 WASHER-PLAIN-SMALL,8MWasher plain 8mm; |
410AA0800 |
from US $0.63 |
||
|
11002
|
11002
11002-5029 HEAD-ASSY-CYLINDER |
11002-5029 |
US $779.26 |
||
|
11004
|
11004
11004-1004
GASKET-HEAD,CYLINDER
Gasket,cylinder head; |
11004-1004 |
— | ||
| replacement | |||||
|
11004
|
11004
11004-1257 GASKET-HEAD,CYLINDERGasket,cylinder head; |
11004-1257 |
from US $31.10 |
||
|
11012
|
11012
11012-1270 CAP,ROCKER,F.BLACKCap,rocker,f.black; |
11012-1270 |
US $18.32 |
||
|
14025
|
14025
14025-1549 COVER,CAMSHAFT,F.BLACCover,camshaft,f.blac; |
14025-1549 |
US $52.33 |
||
|
49002
|
49002
12013-009 GUIDE,INLET VALVEGuide,inlet valve; |
12013-009 |
from US $18.25 |
||
|
49002A
|
49002A
49002-1002 GUIDE,EXHAUST VALVEGuide,exhaust valve; |
49002-1002 |
from US $16.52 |
||
|
92001
|
92001
92003-220 BOLT,8X233Bolt,8x233; |
92003-220 |
from US $9.17 |
||
|
92033
|
92033
92036-023 CIRCLIP-VALVECirclip-valve; |
92036-023 |
from US $0.82 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
|
92055
|
92055
92055-105
O-RING
|
92055-105 |
— | ||
|
92055A
|
92055A
92055-107 O RING,99M/M"o" ring,99m/m; |
92055-107 |
from US $10.83 |
||
|
92055B
|
92055B
92055-112 O-RING,53.5MM"0" ring,53.5mm; |
92055-112 |
from US $4.80 |
||
|
92055C
|
92055C
92055-1149 RING-O,10MMRing-o,10mm; |
92055-1149 |
from US $3.80 |
||
|
92055D
|
92055D
92055-1150 O RING,10MMO ring,10mm; |
92055-1150 |
from US $5.23 |
||
