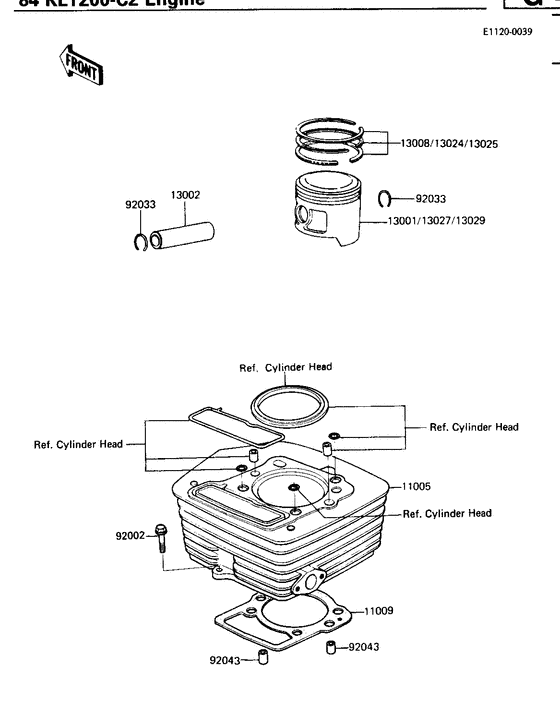

Cylinder/piston ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11005
|
11005
11005-1335 CYLINDER-ENGINE |
11005-1335 |
US $459.68 |
||
|
11009
|
11009
11009-043
GASKET,CYLINDER BASE
Gasket,cylinder base; |
11009-043 |
— | ||
| replacement | |||||
|
11009
|
11009
11060-1366 GASKET,CYLINDER BASEGasket,cylinder base; |
11060-1366 |
from US $7.93 |
||
|
13001
|
13001
13001-083 PISTON,STDPiston,std; |
13001-083 |
from US $88.33 |
||
|
13002
|
13002
13002-026 PIN-PISTON |
13002-026 |
from US $16.79 |
||
|
13008
|
13008
13008-5005 RING SET,STDRing set,std; |
13008-5005 |
from US $71.86 |
||
|
13024
|
13024
13024-5005 RING SET,0.040'0.SRing set,0.040'0.s; |
13024-5005 |
from US $65.14 |
||
|
13025
|
13025
13025-5004 RING SET,0.020'0.SRing set,0.020'0.s; |
13025-5004 |
from US $71.86 |
||
|
13027
|
13027
13027-1001 PISTON,0.040"0/SPiston,0.040"0/s; |
13027-1001 |
US $71.59 |
||
|
13029
|
13029
13029-1001 PISTON,0.020"0/SPiston,0.020"0/s; |
13029-1001 |
US $71.59 |
||
|
92002
|
92002
92002-1105 BOLT,6X28Bolt,6x28; |
92002-1105 |
from US $2.95 |
||
|
92033
|
92033
92036-021 CIRCLIP,PISTON PINCirclip,piston pin; |
92036-021 |
from US $0.82 |
||
|
92043
|
92043
92043-1037 PIN,DOWEL,10X8.2X14Pin,dowel,10x8.2x14; |
92043-1037 |
from US $0.97 |
||
