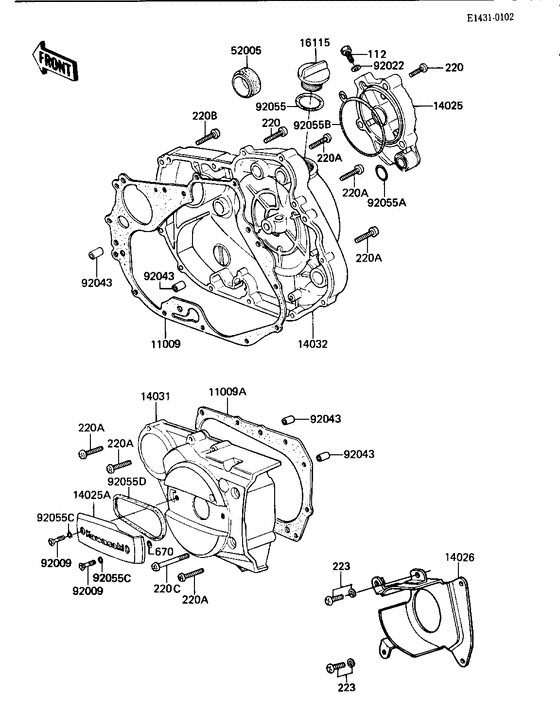

Engine covers ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
112
112X0608 BOLT-UPSET |
112X0608 |
US $23.90 |
||
| replacement | |||||
|
112
|
112
112AD0608 BOLT-UPSET |
112AD0608 |
US $2.39 |
||
|
220
|
220
220X0625
SCREW-PAN-CROS,6X25
|
220X0625 |
— | ||
| replacement | |||||
|
220
|
220
220AD0625 SCREW-PAN-CROS,6X25 |
220AD0625 |
from US $1.09 |
||
|
220A
|
220A
220X0630
SCREW-PAN-CROS
|
220X0630 |
— | ||
| replacement | |||||
|
220A
|
220A
220AD0630 SCREW-PAN-CROS |
220AD0630 |
from US $0.95 |
||
|
220B
|
220B
220X0640
SCREW-PAN-CROS
|
220X0640 |
— | ||
| replacement | |||||
|
220B
|
220B
220AD0640 SCREW-PAN-CROS |
220AD0640 |
from US $0.94 |
||
|
220C
|
220C
220X0660 SCREW-PAN-CROS |
220X0660 |
US $3.40 |
||
| replacement | |||||
|
220C
|
220C
220AD0660 SCREW-PAN-CROS |
220AD0660 |
from US $1.09 |
||
|
223
|
223
223X0610 SCREW-PAN-WS-CROSScrew-pan-cros-ws; |
223X0610 |
US $3.67 |
||
| replacement | |||||
|
223
|
223
223AD0610 SCREW-PAN-WS-CROSScrew-pan-cros-ws; |
223AD0610 |
from US $1.24 |
||
|
670
|
670
670B2012 O RING,12MM"o" ring,12mm; |
670B2012 |
from US $2.84 |
||
|
11009
|
11009
11009-1306 GASKET,CLUTCH COVERGasket,clutch cover; |
11009-1306 |
US $48.98 |
||
| replacement | |||||
|
11009
|
11009
11060-1604 GASKET,CLUTCH COVERGasket,clutch cover; |
11060-1604 |
from US $35.61 |
||
|
11009A
|
11009A
14045-031 GASKET,GENERATOR CVRGasket,l.h engine cov; |
14045-031 |
US $22.70 |
||
| replacement | |||||
|
11009A
|
11009A
11060-1473 GASKET,GENERATOR CVRGasket,l.h engine cov; |
11060-1473 |
US $40.61 |
||
|
14025
|
14025
14025-1559 COVER,OIL FILTERCover,oil filter; |
14025-1559 |
US $52.33 |
||
|
14025A
|
14025A
14025-1606 COVER,GENERATORCover,generator; |
14025-1606 |
US $47.48 |
||
|
14026
|
14026
14026-1052 COVER-CHAIN,BLACKCover-chain,black; |
14026-1052 |
US $67.16 |
||
|
14031
|
14031
14031-1110
Cover-generator
|
14031-1110 |
— | ||
|
14032
|
14032
14032-1098 COVER-CLUTCH |
14032-1098 |
US $177.71 |
||
|
16115
|
16115
16115-1009 CAP-OIL FILLER |
16115-1009 |
from US $10.14 |
||
|
52005
|
52005
52005-1009 GAUGE,OIL LEVELGauge,oil level; |
52005-1009 |
from US $13.15 |
||
|
92009
|
92009
92009-1715 SCREW |
92009-1715 |
from US $2.65 |
||
|
92022
|
92022
92022-304 WASHER,PLAINWasher,plain; |
92022-304 |
from US $2.53 |
||
|
92043
|
92043
92042-007 PIN-DOWELPin-dowel; |
92042-007 |
from US $4.44 |
||
|
92055
|
92055
92055-049 O-RING,31MM"0" ring,31mm; |
92055-049 |
from US $3.37 |
||
|
92055A
|
92055A
92055-098 O RING"o" ring; |
92055-098 |
from US $6.02 |
||
|
92055B
|
92055B
92055-1048 0 RING,FILTER COVER"0" ring,filter cover; |
92055-1048 |
from US $7.78 |
||
|
92055C
|
92055C
92055-109 O RING,DYNAMO COVER"o" ring,dynamo cover; |
92055-109 |
from US $3.17 |
||
|
92055D
|
92055D
92055-1143 RING-O |
92055-1143 |
US $4.73 |
||
