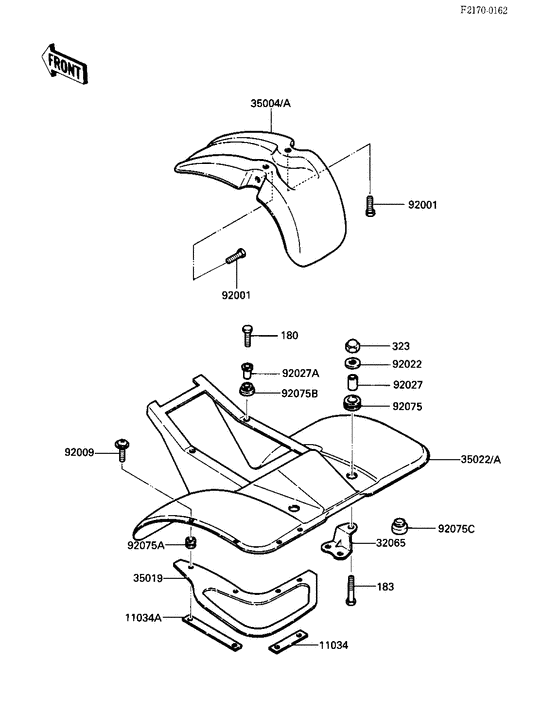

Fenders ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
180
|
180
180B0622 BOLT-UPSET-WSBolt-upset-ws,6x22; |
180B0622 |
from US $0.74 |
||
| replacements | |||||
|
180
|
180
180AA0622 BOLT-UPSET-WSBolt-upset-ws,6x22; |
180AA0622 |
from US $1.15 |
||
|
180
|
180
180AA0625 BOLT-UPSET-WS,6X25Bolt-upset-ws,6x22; |
180AA0625 |
from US $1.15 |
||
|
183
|
183
183B0825
Bolt-upset-ws-small
|
183B0825 |
— | ||
| replacement | |||||
|
183
|
183
183AA0825
Bolt-upset-ws-small
|
183AA0825 |
— | ||
|
323
|
323
323N0800 NUT,CAP,8M/MNut,cap,8m/m; |
323N0800 |
from US $2.65 |
||
|
11034
|
11034
11034-4062 BRACKET,FLAPBracket,flap; |
11034-4062 |
US $7.65 |
||
|
11034A
|
11034A
11034-4063 BRACKET,FLAPBracket,flap; |
11034-4063 |
US $8.03 |
||
|
32065
|
32065
32065-4008 BRACKET |
32065-4008 |
US $5.02 |
||
|
35004
|
35004
35004-4005-6D FENDER-FR,BLACKFender-fr,black; |
35004-4005-6D |
US $15.07 |
||
|
35004A
|
35004A
35004-4005-8S
FENDER-FR,RED
Fender-fr,red; |
35004-4005-8S |
— | ||
|
35019
|
35019
35019-4004
FLAP,BLACK
|
35019-4004 |
— | ||
| replacement | |||||
|
35019
|
35019
35019-4004-6D
FLAP,BLACK
|
35019-4004-6D |
— | ||
|
35022
|
35022
35022-4002-6D FENDER-RR,BLACKFender-rr,black; |
35022-4002-6D |
US $129.11 |
||
|
35022A
|
35022A
35022-4002-8S
FENDER-RR,RED
Fender-rr,red; |
35022-4002-8S |
— | ||
|
92001
|
92001
92001-1764
BOLT,W/SP,6X18
Bolt,w/sp,6x18; |
92001-1764 |
— | ||
|
92009
|
92009
92009-1289 SCREW,6X20Screw,6x20; |
92009-1289 |
from US $2.69 |
||
|
92022
|
92022
92022-092
WASHER SEAL PLATE
92022-101 (canada); |
92022-092 |
— | ||
| replacement | |||||
|
92022
|
92022
92022-101 WASHER SEAL PLATE92022-101 (canada); |
92022-101 |
from US $2.49 |
||
|
92027
|
92027
92027-102 COLLAR |
92027-102 |
from US $1.51 |
||
|
92027A
|
92027A
92027-194 COLLAR |
92027-194 |
from US $4.09 |
||
|
92075
|
92075
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
92075
|
92075
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
92075A
|
92075A
92075-051 DAMPER RUBBERDamper rubber; |
92075-051 |
from US $2.69 |
||
|
92075B
|
92075B
92075-112 DAMPER RUBBERDamper rubber; |
92075-112 |
from US $2.85 |
||
|
92075C
|
92075C
92075-281 DAMPER RUBBERDamper rubber; |
92075-281 |
from US $3.64 |
||
