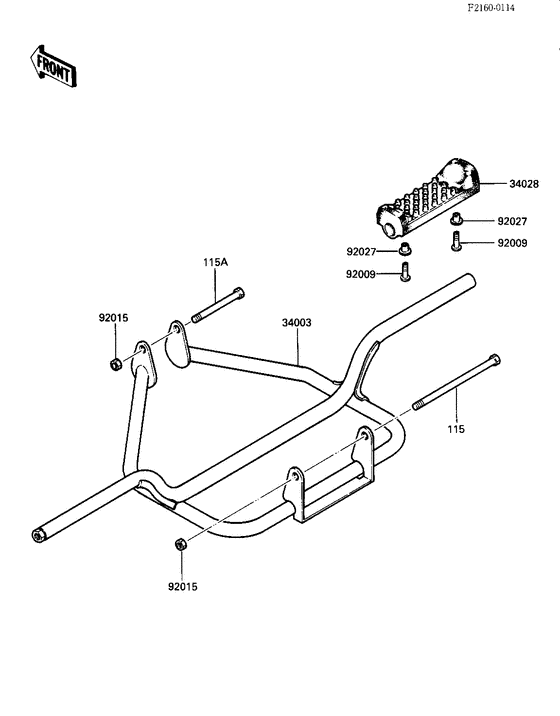

Footrests ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
114B08115 BOLT,8X115Bolt,8x115; |
114B08115 |
US $2.84 |
||
|
115A
|
115A
115B0865 BOLT-SMALL-UPSET |
115B0865 |
US $26.60 |
||
|
34003
|
34003
34003-4011 HOLDER STEP |
34003-4011 |
US $35.35 |
||
|
34028
|
34028
34028-1123 STEP-RUBBER |
34028-1123 |
US $9.18 |
||
|
92009
|
92009
92009-4004
SCREW
|
92009-4004 |
— | ||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92027
|
92027
92027-4020 COLLAR,L=5Collar,l=5; |
92027-4020 |
from US $2.49 |
