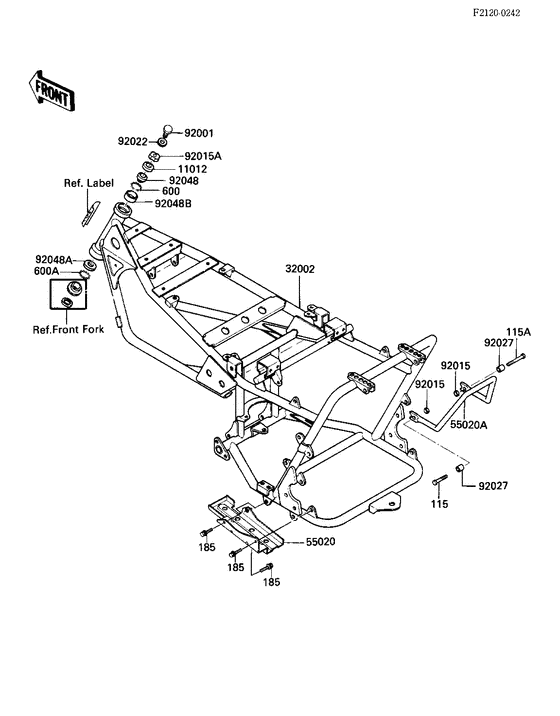

Frame Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0855
BOLT-SMALL-UPSET,8X55
Bolt-small-upset,8x55; |
115G0855 |
— | ||
| replacement | |||||
|
115
|
115
115BA0855 BOLT-SMALL-UPSETBolt-small-upset,8x55; |
115BA0855 |
US $1.24 |
||
|
115A
|
115A
115B0865 BOLT-SMALL-UPSET |
115B0865 |
US $26.60 |
||
|
185
|
185
185B0820 BOLT-UPSET-WSP-SMALL |
185B0820 |
US $0.72 |
||
| replacement | |||||
|
185
|
185
185AA0820 BOLT-UPSET-WSP-SMALL |
185AA0820 |
US $0.75 |
||
|
600
|
600
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $0.79 |
||
|
11012
|
11012
46098-012 CAP,STEERING STEMCap,steering stem; |
46098-012 |
US $6.59 |
||
|
32002
|
32002
32002-4014 FRAME |
32002-4014 |
US $683.95 |
||
|
55020
|
55020
55020-1161 GUARD,CHAIN CASEGuard,chain case; |
55020-1161 |
US $56.27 |
||
|
55020A
|
55020A
55020-4014 GUARD,REAR STAYGuard,rear stay; |
55020-4014 |
US $58.73 |
||
|
92001
|
92001
44041-072
BOLT,STEERING STEM
Bolt,steering stem; |
44041-072 |
— | ||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92015-4007 NUT,STEERING STEMNut,steering stem; |
92015-4007 |
US $21.11 |
||
|
92022
|
92022
44043-056 WASHER,STEERING STEMWasher,steering stem; |
44043-056 |
US $12.10 |
||
|
92027
|
92027
92027-4014
COLLAR,REAR STAY
Collar,rear stay; |
92027-4014 |
— | ||
|
92048
|
92048
92047-014 CONE,STRG STM BRG,UPCone,strg stm brg,up; |
92047-014 |
from US $10.61 |
||
| replacement | |||||
|
92048
|
92048
92048-0035 Race,steering Stem BeCone,strg stm brg,up; |
92048-0035 |
from US $10.61 |
||
|
92048A
|
92048A
92048-005 RACE STEERING BEARINGRace steering bearing; |
92048-005 |
from US $10.77 |
||
|
92048B
|
92048B
92048-009 RACE,STRG STM BEARINGRace,strg stm bearing; |
92048-009 |
from US $11.88 |
||
| replacement | |||||
|
92048B
|
92048B
92048-0038 Race,steering Stem BeRace,strg stm bearing; |
92048-0038 |
from US $11.88 |
||
