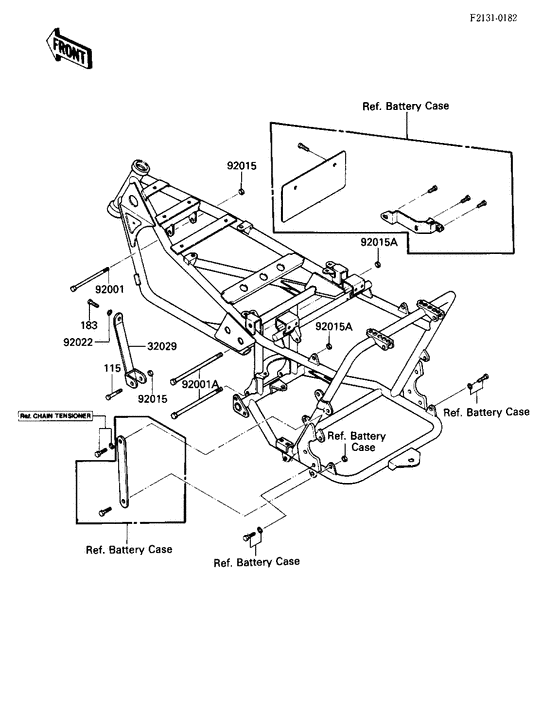

Frame fittings Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115B0865 BOLT-SMALL-UPSET |
115B0865 |
US $26.60 |
||
|
183
|
183
183G0820 BOLT-UPSET-WS-SMALL |
183G0820 |
from US $1.27 |
||
| replacement | |||||
|
183
|
183
183BA0820 BOLT-UPSET-WS-SMALL |
183BA0820 |
from US $1.11 |
||
|
32029
|
32029
32029-4018 BRACKET,ENGINEBracket,engine; |
32029-4018 |
US $15.77 |
||
|
92001
|
92001
92001-1582
BOLT,FLANGED,8X70
|
92001-1582 |
— | ||
| replacement | |||||
|
92001
|
92001
92002-1349 BOLT,FLANGED,8X70 |
92002-1349 |
from US $3.17 |
||
|
92001A
|
92001A
92001-1602 BOLT, FLANGED, 10X110Bolt, flanged, 10x110; |
92001-1602 |
from US $6.49 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92019-021
Nut,lock,10m/m
Nut,lock,10mm; |
92019-021 |
— | ||
| replacements | |||||
|
92015A
|
92015A
92210-1184 NUTNut,lock,10mm; |
92210-1184 |
from US $4.09 |
||
|
92015A
|
92015A
92015-1962 NUTNut,lock,10mm; |
92015-1962 |
from US $3.33 |
||
|
92022
|
92022
92022-1564 WASHER,8X26X2.3Washer,8x26x2.3; |
92022-1564 |
from US $2.49 |
||
