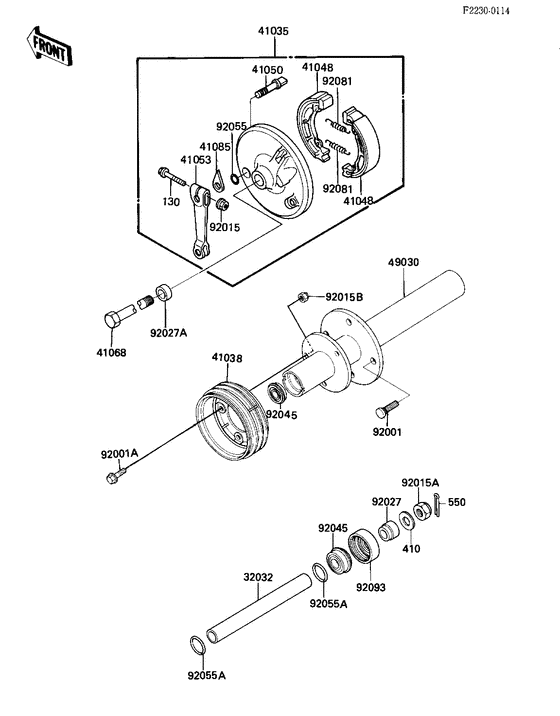

Front hub/brake ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130G0625
BOLT-FLANGED,6X25
Bolt,flanged,6x25; |
130G0625 |
— | ||
| replacement | |||||
|
130
|
130
130BA0625 BOLT-FLANGED,6X25Bolt,flanged,6x25; |
130BA0625 |
from US $0.79 |
||
|
410
|
410
410B1600 WASHER PLAIN 16MM |
410B1600 |
US $7.20 |
||
|
550
|
550
550D3230 PIN,COTTERPin,cotter; |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
550
|
550
550AA3230 PIN,COTTERPin,cotter; |
550AA3230 |
from US $0.94 |
||
|
32032
|
32032
32032-4109 PIPE,SPACERPipe,spacer; |
32032-4109 |
US $9.23 |
||
|
41035
|
41035
41035-1164 PANEL-ASSY-BRAKE,FRPanel-assy-brake,fr; |
41035-1164 |
US $315.16 |
||
|
41038
|
41038
41038-1115 DRUM,FRDrum,fr; |
41038-1115 |
US $126.07 |
||
|
41048
|
41048
41048-1085 SHOE-BRAKE |
41048-1085 |
from US $35.72 |
||
|
41050
|
41050
41050018 CAM SHAFT-FRONT BRAKECam shaft-front brake; |
41050018 |
from US $19.76 |
||
|
41053
|
41053
41053005 LEVER FRONT BRAKE CAMLever front brake cam; |
41053005 |
from US $10.27 |
||
|
41068
|
41068
41068-1168 AXLE,L=368Axle,l=368; |
41068-1168 |
US $72.95 |
||
|
41085
|
41085
41085013 INDICATOR,FR BK SHOEIndicator,fr bk shoe; |
41085013 |
from US $10.45 |
||
|
49030
|
49030
49030-1054 HUB-FRONT |
49030-1054 |
US $80.24 |
||
|
92001
|
92001
92001-4006 BOLT,LUGBolt,lug; |
92001-4006 |
US $2.09 |
||
|
92001A
|
92001A
92001-4034 BOLT,FLANGED,10X22Bolt,flanged,10x22; |
92001-4034 |
US $3.35 |
||
|
92015
|
92015
41072007 NUT,6MMNut,6mm; |
41072007 |
from US $2.85 |
||
|
92015A
|
92015A
42045020 NUT,CASTLE,14MMNut,14mm; |
42045020 |
US $8.41 |
||
| replacement | |||||
|
92015A
|
92015A
92015-1765 NUT,CASTLE,14MMNut,14mm; |
92015-1765 |
from US $6.34 |
||
|
92015B
|
92015B
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
92027
|
92027
92027-1734 COLLAR,FR HUB,L=19Collar,fr hub,l=19; |
92027-1734 |
US $23.08 |
||
|
92027A
|
92027A
92027-4009 COLLAR |
92027-4009 |
US $3.15 |
||
|
92045
|
92045
92045-4005 BEARING BALL HUB-ASSY |
92045-4005 |
US $21.42 |
||
|
92055
|
92055
92055-004 0 RING,11MM"0" ring,11mm; |
92055-004 |
from US $3.17 |
||
|
92055A
|
92055A
92055-4001 0 RING |
92055-4001 |
US $1.28 |
||
|
92081
|
92081
92081-1766 SPRING,BRAKE SHOESpring,brake shoe; |
92081-1766 |
from US $5.39 |
||
|
92093
|
92093
92093-1157 SEAL,FR HUBSeal,fr hub; |
92093-1157 |
US $4.25 |
||
