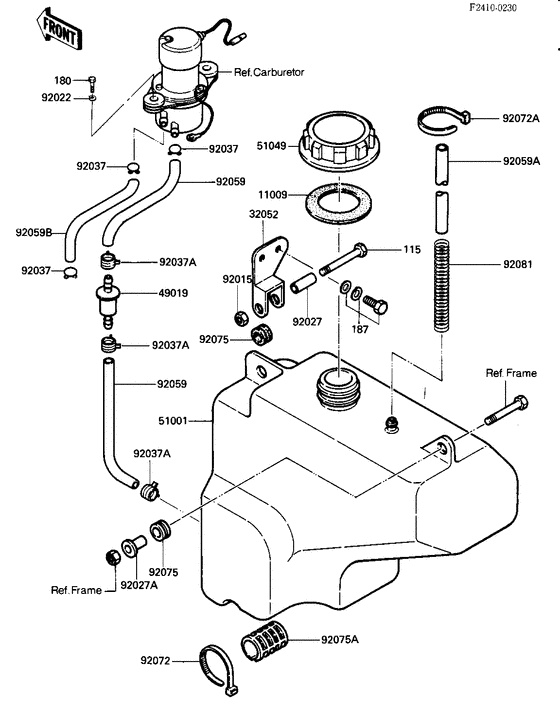

Fuel tank ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0830
BOLT-SMALL-USET,8X30
Bolt-small-upset,8x30; |
115G0830 |
— | ||
| replacement | |||||
|
115
|
115
115BA0830 BOLT-SMALL-USET,8X30Bolt-small-upset,8x30; |
115BA0830 |
from US $1.09 |
||
|
180
|
180
180B0635 BOLT-UPSET-WSBolt-upset-ws,6x35; |
180B0635 |
US $0.68 |
||
| replacement | |||||
|
180
|
180
180AA0635 BOLT-UPSET-WSBolt-upset-ws,6x35; |
180AA0635 |
from US $1.09 |
||
|
187
|
187
187B0612
BOLT-UPSET-WSP
Bolt 6x12; |
187B0612 |
— | ||
| replacement | |||||
|
187
|
187
187AA0612 BOLT-UPSET-WSPBolt 6x12; |
187AA0612 |
from US $1.11 |
||
|
11009
|
11009
11009-3020 GASKET,FUEL TANK CAPGasket,fuel tank cap; |
11009-3020 |
from US $10.14 |
||
|
32052
|
32052
32052-4010 BRACKET-TANK |
32052-4010 |
US $10.69 |
||
|
49019
|
49019
49019-4001 FILTER-FUEL |
49019-4001 |
US $6.26 |
||
|
51001
|
51001
51001-4003-8L
TANK-FUEL,GRAY
Tank-fuel,gray; |
51001-4003-8L |
— | ||
|
51049
|
51049
51049-3001 CAP,FUEL TANKCap,fuel tank; |
51049-3001 |
from US $8.55 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92022
|
92022
92022-1565 WASHER,6.5X16X2Washer,6.5x16x2; |
92022-1565 |
from US $2.53 |
||
|
92027
|
92027
92027-012 SPACER FUEL TANK MONTSpacer fuel tank mont; |
92027-012 |
from US $3.27 |
||
|
92027A
|
92027A
92027-1134 COLLAR,FUEL TANK FITTCollar,fuel tank fitt; |
92027-1134 |
from US $8.15 |
||
|
92037
|
92037
92037-1682 CLAMP,TUBEClamp,tube; |
92037-1682 |
from US $3.27 |
||
|
92037A
|
92037A
92037-4009 CLAMP |
92037-4009 |
US $0.36 |
||
|
92059
|
92059
92059-4029 TUBE,5.3X10.5X85Tube,5.3x10.5x85; |
92059-4029 |
US $2.81 |
||
|
92059A
|
92059A
92059-4033 TUBE |
92059-4033 |
US $1.40 |
||
|
92059B
|
92059B
92059-4030
TUBE,5.3X10.5X450
Tube,5.3x10.5x450; |
92059-4030 |
— | ||
|
92072
|
92072
92072-3505
BAND
|
92072-3505 |
— | ||
|
92072A
|
92072A
92072-4004 BAND |
92072-4004 |
US $2.30 |
||
|
92075
|
92075
92075-013
DAMPER RUBB TANK FRNT
Damper rubb tank frnt; |
92075-013 |
— | ||
| replacement | |||||
|
92075
|
92075
92075-1057 DAMPERDamper rubb tank frnt; |
92075-1057 |
from US $3.33 |
||
|
92075A
|
92075A
92075-084 DAMPER RUBBERDamper rubber; |
92075-084 |
from US $5.28 |
||
|
92081
|
92081
92081-4011 SPRING |
92081-4011 |
US $1.76 |
||
