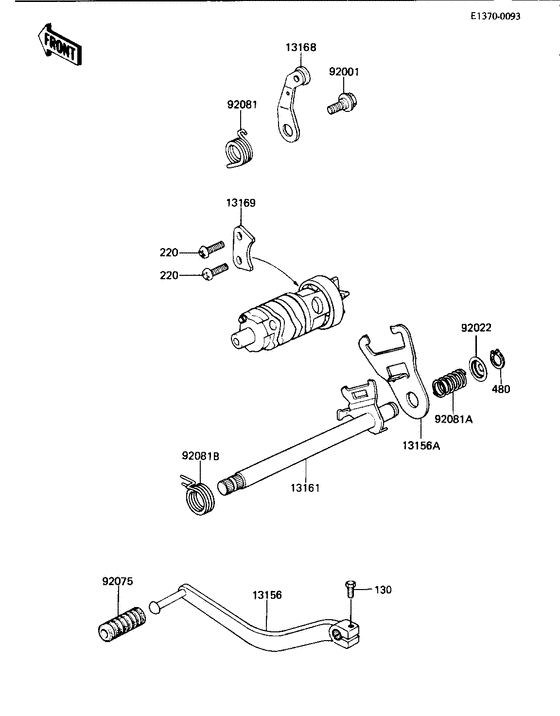

Gear change mechanism ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
130
|
130
130S0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,bla; |
130S0620 |
from US $1.43 |
||
| replacement | |||||
|
130
|
130
130CB0620 BOLT-FLANGED,6X20,BLCBolt-flanged,6x20,bla; |
130CB0620 |
from US $1.11 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
480
|
480
480J1300 CIRCLIP,13MMCirclip,13mm; |
480J1300 |
from US $1.11 |
||
|
13156
|
13156
13156-1070 LEVER,GEAR SHIFTLever,gear shift; |
13156-1070 |
US $88.78 |
||
|
13156A
|
13156A
13156-1122 LEVER-CHANGE |
13156-1122 |
from US $17.42 |
||
|
13161
|
13161
13161-1046 LEVER-COMP-CHANGE SHA |
13161-1046 |
US $60.03 |
||
|
13168
|
13168
13168-1129 LEVER,GEAR CHANGELever,gear change; |
13168-1129 |
from US $6.34 |
||
|
13169
|
13169
13169014 PLATE,GEAR CHANGEPlate,gear change; |
13169014 |
from US $3.67 |
||
|
92001
|
92001
92001-1715 BOLT |
92001-1715 |
from US $6.65 |
||
|
92022
|
92022
92022-1406 WASHER,CHANGE LEVERWasher,change lever; |
92022-1406 |
US $8.10 |
||
|
92075
|
92075
92160-1108 DAMPER,CHANGE PEDALDamper,change pedal; |
92160-1108 |
US $9.41 |
||
| replacement | |||||
|
92075
|
92075
92161-2381 DAMPER,CHANGE PEDALDamper,change pedal; |
92161-2381 |
from US $5.70 |
||
|
92081
|
92081
92081-1496 SPRING |
92081-1496 |
from US $6.18 |
||
| replacement | |||||
|
92081
|
92081
92145-1525 SPRING,LEVER COMPOSIT |
92145-1525 |
from US $5.39 |
||
|
92081A
|
92081A
92081-1536 SPRING,CHANGE REVERSpring,change rever; |
92081-1536 |
US $2.43 |
||
|
92081B
|
92081B
92083-028
SPRING,CHG PEDL RTRN
Spring,chg pedl rtrn; |
92083-028 |
— | ||
