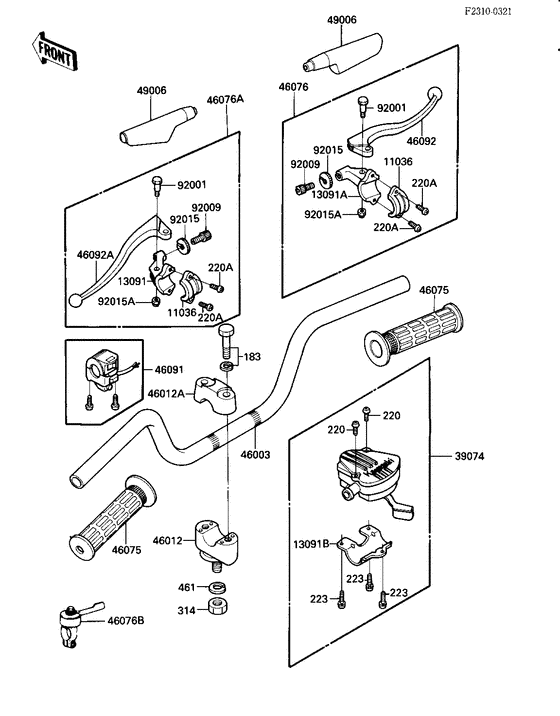

Handlebar ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
183
|
183
183B0835 BOLT-UPSET-WS-SMALL |
183B0835 |
US $0.79 |
||
| replacement | |||||
|
183
|
183
183AA0835 BOLT-UPSET-WS-SMALL |
183AA0835 |
US $0.79 |
||
|
220
|
220
220C0512 SCREW-PAN-CROS,5X12,BScrew-pan-cros,5x12,b; |
220C0512 |
US $1.11 |
||
| replacement | |||||
|
220
|
220
220AB0512 SCREW-PAN-CROS,5X12,BScrew-pan-cros,5x12,b; |
220AB0512 |
from US $1.11 |
||
|
220A
|
220A
220C0514
SCREW-PAN-CROSS
Screw-pan-cross,5x14; |
220C0514 |
— | ||
| replacement | |||||
|
220A
|
220A
220AB0514 SCREW-PAN-CROSSScrew-pan-cross,5x14; |
220AB0514 |
from US $1.25 |
||
|
223
|
223
223C0512 SCREW-PAN-WS-CROS |
223C0512 |
US $5.36 |
||
| replacement | |||||
|
223
|
223
223AB0512 SCREW-PAN-WS-CROS |
223AB0512 |
from US $5.61 |
||
|
314
|
314
314B1000
NUT-HEX-FINE
Nut,10mm; |
314B1000 |
— | ||
| replacement | |||||
|
314
|
314
314AA1000 NUT-HEX-FINENut,10mm; |
314AA1000 |
from US $1.01 |
||
|
461
|
461
461F1000 WASHER SPRING 10MMWasher spring 10mm; |
461F1000 |
US $0.95 |
||
| replacement | |||||
|
461
|
461
461DA1000 WASHER-SPRINGWasher spring 10mm; |
461DA1000 |
from US $0.90 |
||
|
11036
|
11036
11036-1297
BRACKET,LEVER HOLDER
|
11036-1297 |
— | ||
| replacements | |||||
|
11036
|
11036
11056-0150
BRACKET,LEVER HOLDER
|
11056-0150 |
— | ||
|
11036
|
11036
11056-0036 BRACKET,LEVER HOLDER |
11056-0036 |
from US $9.33 |
||
|
11036
|
11036
11058-2777 BRACKET,LEVER HOLDER |
11058-2777 |
US $17.31 |
||
|
13091
|
13091
13091-1131 HOLDER,CLUTCH LEVERHolder,clutch lever; |
13091-1131 |
from US $30.52 |
||
|
13091A
|
13091A
13091-1135 HOLDER,BRAKE LEVERHolder,brake lever; |
13091-1135 |
from US $32.33 |
||
| replacement | |||||
|
13091A
|
13091A
13280-0354 HOLDER,BRAKE LEVERHolder,brake lever; |
13280-0354 |
from US $13.38 |
||
|
13091B
|
13091B
13091-1294 HOLDER,THROTTLEHolder,throttle; |
13091-1294 |
US $12.49 |
||
|
39074
|
39074
39074-1051 LEVER-ASSY-THROTTLE |
39074-1051 |
US $66.80 |
||
| replacements | |||||
|
39074
|
39074
39074-1055 LEVER-ASSY-THROTTLE |
39074-1055 |
from US $48.99 |
||
|
39074
|
39074
39074-0012 Lever-Assy-Throttle |
39074-0012 |
US $89.18 |
||
|
46003
|
46003
46003-4004
HANDLEBAR
|
46003-4004 |
— | ||
|
46012
|
46012
46012-002-80
HOLDER,HANDLEBAR,BUFF
Holder,handlebar,buff; |
46012-002-80 |
— | ||
|
46012A
|
46012A
46012-004
HOLDER UPPER HANDLBAR
Holder upper handlbar; |
46012-004 |
— | ||
| replacement | |||||
|
46012A
|
46012A
46012-1252 HOLDER-HANDLE,UPPHolder upper handlbar; |
46012-1252 |
US $15.36 |
||
|
46075
|
46075
46075-4003
GRIP
Grip,rh; |
46075-4003 |
— | ||
| replacement | |||||
|
46075
|
46075
46075-1056 GRIPGrip,rh; |
46075-1056 |
from US $22.75 |
||
|
46076
|
46076
46076-1120 LEVER-ASSY-GRIP |
46076-1120 |
US $52.63 |
||
|
46076A
|
46076A
46076-1122 LEVER-ASSY-GRIP,LHLever-assy-grip,lh; |
46076-1122 |
US $35.30 |
||
|
46076B
|
46076B
46109013 LEVER ASSY,STARTERLever assy,starter; |
46109013 |
US $32.44 |
||
| replacement | |||||
|
46076B
|
46076B
46109-011 LEVER ASSY,STARTERLever assy,starter; |
46109-011 |
US $32.44 |
||
|
46091
|
46091
46091-1393
HOUSING-ASSY-CONTROL,
|
46091-1393 |
— | ||
|
46092
|
46092
46092-1109
LEVER-GRIP,BRAKE
Lever-grip,brake; |
46092-1109 |
— | ||
|
46092A
|
46092A
46092-1110 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-1110 |
US $28.24 |
||
| replacement | |||||
|
46092A
|
46092A
46092-0045 LEVER-GRIP,CLUTCHLever-grip,clutch; |
46092-0045 |
from US $21.64 |
||
|
49006
|
49006
49006-1017 BOOTS,LEVER HOLDERBoots,lever holder; |
49006-1017 |
from US $16.47 |
||
|
92001
|
92001
92001-1757 BOLT,LEVER SETBolt,lever set; |
92001-1757 |
US $4.25 |
||
|
92009
|
92009
46055009 SCREW,CABLE ADJUSTScrew,cable adjust; |
46055009 |
from US $12.99 |
||
|
92015
|
92015
46056006 NUT,CABLE ADJUST LOCKNut,cable adjust lock; |
46056006 |
from US $6.02 |
||
|
92015A
|
92015A
92019-008 NUT |
92019-008 |
from US $2.53 |
||
