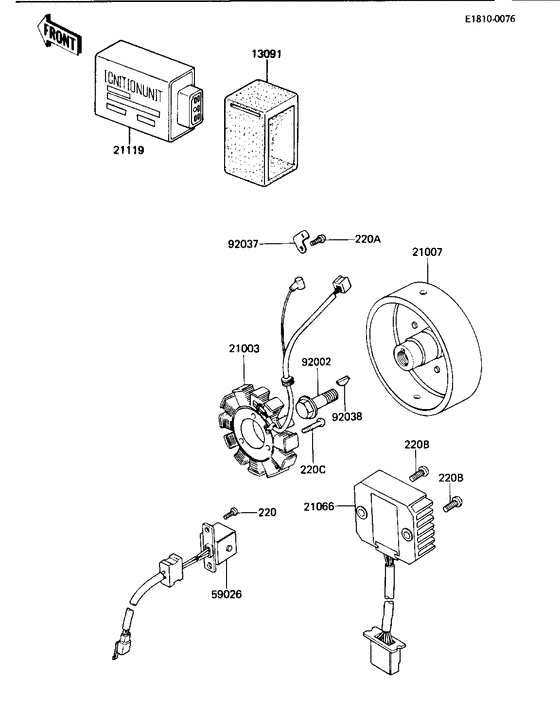

Ignition/generator Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0508
SCREW-PAN-CROS
Screw pan head 5x8; |
220B0508 |
— | ||
| replacement | |||||
|
220
|
220
220AA0508 SCREW-PAN-CROSScrew pan head 5x8; |
220AA0508 |
from US $0.78 |
||
|
220A
|
220A
220B0608
SCREW-PAN-CROS
Screw pan head 6x8; |
220B0608 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0608 SCREW-PAN-CROSScrew pan head 6x8; |
220AA0608 |
from US $0.92 |
||
|
220B
|
220B
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220B
|
220B
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
220C
|
220C
220B0620 SCREW PAN HEAD 6X20Screw pan head 6x20; |
220B0620 |
US $1.27 |
||
| replacement | |||||
|
220C
|
220C
220AA0620 SCREW-PAN HEAD,6X20Screw pan head 6x20; |
220AA0620 |
from US $0.95 |
||
|
13091
|
13091
13091-1095
HOLDER
|
13091-1095 |
— | ||
|
21003
|
21003
21003-1002 STATOR ASSY |
21003-1002 |
US $4,124.23 |
||
|
21007
|
21007
21007-1107 ROTOR |
21007-1107 |
US $377.75 |
||
|
21066
|
21066
21066-1032 REGULATOR-VOLTAGE |
21066-1032 |
from US $186.62 |
||
|
21119
|
21119
21119-1193
IGNITER
|
21119-1193 |
— | ||
|
59026
|
59026
59026-1018
COIL-PULSING
|
59026-1018 |
— | ||
|
92002
|
92002
92002-1296 BOLT,10X40Bolt,10x40; |
92002-1296 |
from US $6.65 |
||
|
92037
|
92037
92037-194 CLAMP |
92037-194 |
US $2.95 |
||
|
92038
|
92038
92038-001 WOODRUFF KEYWoodruff key; |
92038-001 |
from US $3.73 |
||
