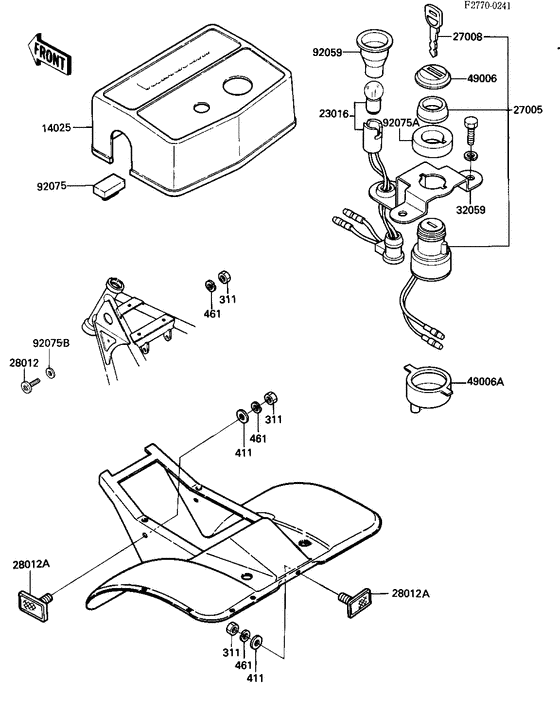

Ignition switch/reflectors Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
311
311B0500
NUT-HEX,5MM
Nut,5mm; Cn |
311B0500 |
— | ||
| replacement | |||||
|
311
|
311
311AA0500 NUT-HEX,5MMNut,5mm; Cn |
311AA0500 |
from US $0.78 |
||
|
411
|
411
411B0500
W-PLAIN-S
Washer plain 5mm; Cn |
411B0500 |
— | ||
| replacements | |||||
|
411
|
411
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; Cn |
411AA0500 |
from US $0.88 |
||
|
411
|
411
410AA0500 W-PLAIN-SWasher plain 5mm; Cn |
410AA0500 |
from US $0.78 |
||
|
461
|
461
461F0500
WASHER-SPRING
Washer spring 5mm; Cn |
461F0500 |
— | ||
| replacement | |||||
|
461
|
461
461DA0500 WASHER-SPRINGWasher spring 5mm; Cn |
461DA0500 |
from US $0.48 |
||
|
14025
|
14025
14025-4023
COVER,SWITCH
Cover,switch; |
14025-4023 |
— | ||
|
23016
|
23016
23016-1025
LAMP-ASSY,IGNITION
Lamp-assy,ignition; |
23016-1025 |
— | ||
|
27005
|
27005
27005-1117
SWITCH-ASSY-IGNITION
|
27005-1117 |
— | ||
|
27008
|
27008
27008-1103 KEY-LOCK,BLANKKey-lock,blank; |
27008-1103 |
from US $14.57 |
||
|
28012
|
28012
28012016 REFLECTOR,REFLEXReflector,reflex; Cn |
28012016 |
from US $15.71 |
||
|
28012A
|
28012A
28012-1054
Reflector-reflex,rr
Reflector-reflex,rr; Cn |
28012-1054 |
— | ||
| replacement | |||||
|
28012A
|
28012A
28012-1088 Reflector-reflexReflector-reflex,rr; Cn |
28012-1088 |
from US $17.58 |
||
|
32059
|
32059
32059-4003 BRACKET-SWITCH |
32059-4003 |
US $7.92 |
||
|
49006
|
49006
49006-4004 BOOT |
49006-4004 |
US $4.81 |
||
|
49006A
|
49006A
49006-4006
BOOT,IGNITION SWITCH
Boot,ignition switch; |
49006-4006 |
— | ||
|
92059
|
92059
92059-1559
TUBE
|
92059-1559 |
— | ||
|
92075
|
92075
92075-099 DAMPER RUBBERDamper rubber; |
92075-099 |
from US $3.33 |
||
|
92075A
|
92075A
92075-4016
DAMPER IGNITION SWITH
Damper ignition swith; |
92075-4016 |
— | ||
|
92075B
|
92075B
92094-011 DAMPER RUBBER,REFLECTDamper rubber,reflect; Cn |
92094-011 |
from US $2.65 |
||
