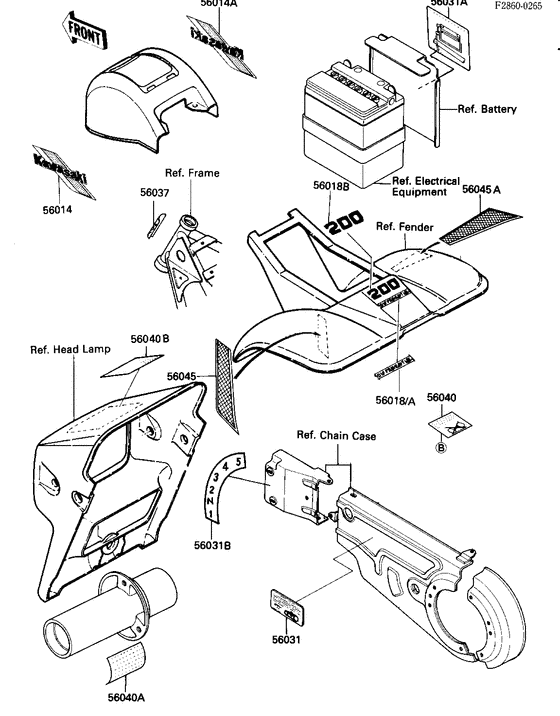

Labels ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
56014
|
56014
56014-4046
EMBLEM,KAWASAKI,LH
Emblem,kawasaki,lh; |
56014-4046 |
— | ||
|
56014A
|
56014A
56014-4047
EMBLEM,KAWASAKI,RH
Emblem,kawasaki,rh; |
56014-4047 |
— | ||
|
56018
|
56018
56018-4019
MARK,DIFFERENTIAL BLK
Mark,differential blk; |
56018-4019 |
— | ||
|
56018A
|
56018A
56018-4020
MARK,DIFFERENTIAL RED
Mark,differential red; |
56018-4020 |
— | ||
|
56018B
|
56018B
56018-4037
MARK,200,RR-FENDER
Mark,200,rr-fender; |
56018-4037 |
— | ||
|
56031
|
56031
56031-1327
LABEL-MANUAL,CHAIN
Label-manual,chain; |
56031-1327 |
— | ||
|
56031A
|
56031A
56031-1328
LABEL-MANUAL,BATTERY
Label-manual,battery; |
56031-1328 |
— | ||
|
56031B
|
56031B
56031-4008
LABEL-SHIFT PATTERN
|
56031-4008 |
— | ||
|
56037
|
56037
56037-4009
LABEL SPECIFICATION
|
56037-4009 |
— | ||
|
56040
|
56040
56040-1112
LABEL-WARNING,DIFFERE
Label-warning,differe; |
56040-1112 |
— | ||
|
56040A
|
56040A
56040-4009
LABEL-DO NOT CARRY
|
56040-4009 |
— | ||
|
56040B
|
56040B
56040-4015
LABEL,WARNING
Label,warning; |
56040-4015 |
— | ||
|
56045
|
56045
56027-4149
PATTERN,RR-FENDER,LH
Pattern,rr-fender,lh; |
56027-4149 |
— | ||
|
56045A
|
56045A
56027-4150
PATTERN,RR-FENDER,RH
Pattern,rr-fender,rh; |
56027-4150 |
— |
