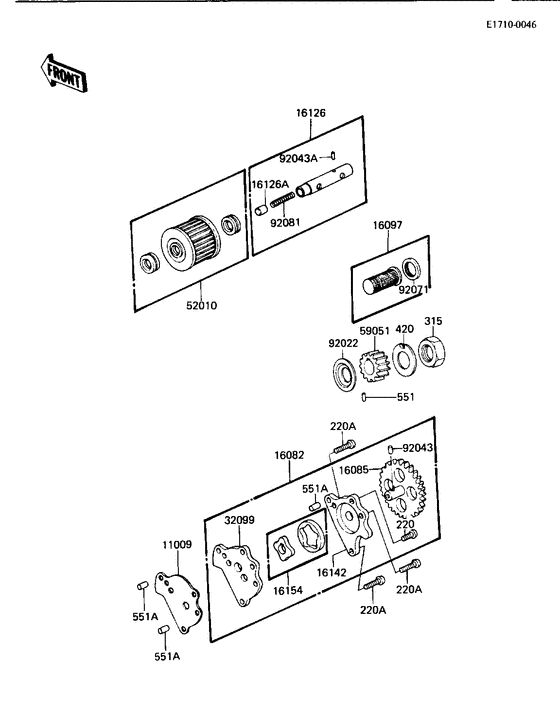

Oil pump/oil filter ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0616
SCREW-PAN-CROS,6X16
Screw pan head 6x16; |
220B0616 |
— | ||
| replacement | |||||
|
220
|
220
220AA0616 SCREW-PAN-CROS,6X16Screw pan head 6x16; |
220AA0616 |
from US $0.95 |
||
|
220A
|
220A
220B0625
SCREW-PAN-CROSS,6X25
Screw pan head 6x25; |
220B0625 |
— | ||
| replacement | |||||
|
220A
|
220A
220AA0625 SCREW-PAN-CROSS,6X25Screw pan head 6x25; |
220AA0625 |
from US $0.95 |
||
|
315
|
315
315B1600 NUT,16MMNut 16mm; |
315B1600 |
from US $1.74 |
||
| replacement | |||||
|
315
|
315
315AA1600 NUT,16MMNut 16mm; |
315AA1600 |
from US $1.27 |
||
|
420
|
420
420B1611 WASHER,LOCK,16M/MWasher,lock,16m/m; |
420B1611 |
from US $3.33 |
||
| replacement | |||||
|
420
|
420
420AA1611 WASHER,LOCK,16M/MWasher,lock,16m/m; |
420AA1611 |
from US $2.53 |
||
|
551
|
551
551A0312 PIN DOWEL 3X12 |
551A0312 |
from US $0.45 |
||
|
551A
|
551A
551A0608 PIN,DOWEL,6X8Pin,dowel,6x8; |
551A0608 |
from US $2.38 |
||
|
11009
|
11009
11060-1115 GASKET,OIL PUMPGasket,oil pump; |
11060-1115 |
from US $3.27 |
||
|
16082
|
16082
16082-1015 PUMP ASSY OIL |
16082-1015 |
US $153.95 |
||
|
16085
|
16085
16085-026 GEAR,OIL PUMPGear,oil pump; |
16085-026 |
US $25.76 |
||
|
16097
|
16097
16097-1001 STRAINER ASSY,OILStrainer assy,oil; |
16097-1001 |
from US $10.45 |
||
|
16126
|
16126
16156002 PISTON-ASSY,VALVEBolt assy,oil filter; |
16156002 |
US $23.49 |
||
|
16126A
|
16126A
92136002 PISTONPiston; |
92136002 |
from US $3.01 |
||
|
16142
|
16142
16142-1006 COVER OIL PUMP |
16142-1006 |
US $18.41 |
||
|
16154
|
16154
16154-1008 ROTOR OIL PUMPRotor oil pump; |
16154-1008 |
from US $23.34 |
||
|
32099
|
32099
16141-006
BODY,OIL PUMP
Body,oil pump; |
16141-006 |
— | ||
|
52010
|
52010
16099-004 FILTER,OILFilter,oil; |
16099-004 |
from US $9.64 |
||
|
59051
|
59051
16084-018 GEAR,OIL PUMPGear,oil pump; |
16084-018 |
US $11.14 |
||
|
92022
|
92022
92022-1377 WASHER,16X29X1Washer,16x29x1; |
92022-1377 |
from US $3.89 |
||
|
92043
|
92043
92042-041 PIN,DOWELPin,dowel; |
92042-041 |
from US $3.96 |
||
|
92043A
|
92043A
92043-123 SPRING PINSpring pin; |
92043-123 |
from US $3.01 |
||
|
92071
|
92071
92071-100 GROMMET,OIL STRAINERGrommet,oil strainer; |
92071-100 |
from US $4.09 |
||
|
92081
|
92081
92081-043 SPRING,PISTONSpring,piston; |
92081-043 |
from US $3.33 |
||
