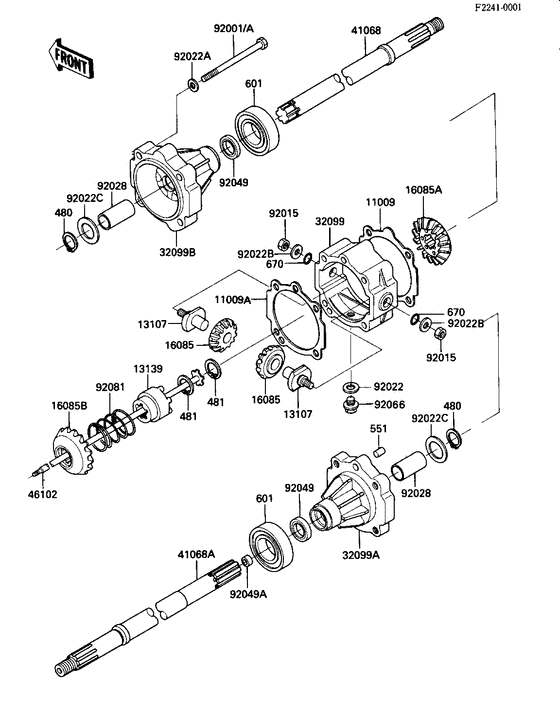

Rear axle ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
480
|
480
480J2200 CIRCLIP,22MMCirclip,22mm; |
480J2200 |
from US $1.27 |
||
|
481
|
481
481J1800 CIRCLIP,18MMCirclip,18mm; |
481J1800 |
from US $1.11 |
||
|
551
|
551
551A1020 PIN-DOWEL,10X20Pin-dowel,10x20; |
551A1020 |
US $33.30 |
||
|
601
|
601
601A600800
New Genuine Part
|
601A600800 |
— | ||
|
670
|
670
670B2012 O RING,12MM"o" ring,12mm; |
670B2012 |
from US $2.84 |
||
|
11009
|
11009
11009-1345 GASKET,DIFFERENTIAL CGasket,differential c; |
11009-1345 |
US $4.57 |
||
|
11009A
|
11009A
11009-1398 GASKET,DIFFERENTIAL GGasket,differential g; |
11009-1398 |
US $7.96 |
||
|
13107
|
13107
13107-1113 SHAFT,PINIONShaft,pinion; |
13107-1113 |
US $20.77 |
||
|
13139
|
13139
13139-1004 SHIFTER |
13139-1004 |
US $42.48 |
||
|
16085
|
16085
16085-4005 GEAR,BEVEL,10TGear,bevel,10t; |
16085-4005 |
US $53.28 |
||
|
16085A
|
16085A
16085-4006 GEAR,BEVEL,16TGear,bevel,16t; |
16085-4006 |
US $223.54 |
||
|
16085B
|
16085B
16085-4007 GEAR,BEVEL,16TGear,bevel,16t; |
16085-4007 |
US $102.17 |
||
|
32099
|
32099
32099-1058 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1058 |
US $122.94 |
||
|
32099A
|
32099A
32099-1059 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1059 |
US $90.70 |
||
|
32099B
|
32099B
32099-1060 CASE,DIFFERENTIAL GEACase,differential gea; |
32099-1060 |
US $70.47 |
||
|
41068
|
41068
41068-1151 AXLE,RR,RHAxle,rr,rh; |
41068-1151 |
US $166.63 |
||
|
41068A
|
41068A
41068-1152 AXLE,RR,LHAxle,rr,lh; |
41068-1152 |
US $184.64 |
||
|
46102
|
46102
46102-4007 ROD,REAR AXLERod,rear axle; |
46102-4007 |
US $15.77 |
||
|
92001
|
92001
92001-1842 BOLT,10X103Bolt,10x103; |
92001-1842 |
US $8.23 |
||
|
92001A
|
92001A
92001-1842 BOLT,10X103Bolt,10x103; |
92001-1842 |
US $8.23 |
||
|
92015
|
92015
92015-1774 NUT,LOCK,12MM |
92015-1774 |
US $5.80 |
||
| replacement | |||||
|
92015
|
92015
92210-1249 NUT,LOCK,12MM |
92210-1249 |
from US $3.96 |
||
|
92022
|
92022
92022-1211 WASHER,12X18X1Washer,12x18x1; |
92022-1211 |
from US $2.53 |
||
|
92022A
|
92022A
92022-1453 WASHER,10.5X18X2.5Washer,10.5x18x2.5; |
92022-1453 |
US $3.69 |
||
|
92022B
|
92022B
92022-1509 WASHER,12.3X23X4.5Washer,12.3x23x4.5; |
92022-1509 |
US $5.81 |
||
|
92022C
|
92022C
92022-4029 WASHER,22X40X2Washer,22x40x2; |
92022-4029 |
US $2.84 |
||
|
92028
|
92028
92028-1206 BUSHING,DIFFERENTIALBushing,differential; |
92028-1206 |
US $25.43 |
||
|
92049
|
92049
92049-1106 SEAL-OIL |
92049-1106 |
from US $7.79 |
||
|
92049A
|
92049A
92050-075 OIL SEALOil seal; |
92050-075 |
from US $7.13 |
||
|
92066
|
92066
92066-1174 PLUG,OIL DRAIN,12X15Plug,oil drain,12x15; |
92066-1174 |
from US $4.44 |
||
|
92081
|
92081
92081-1568
SPRING,DIFFERENTIAL,L
Spring,differential,l; |
92081-1568 |
— | ||
