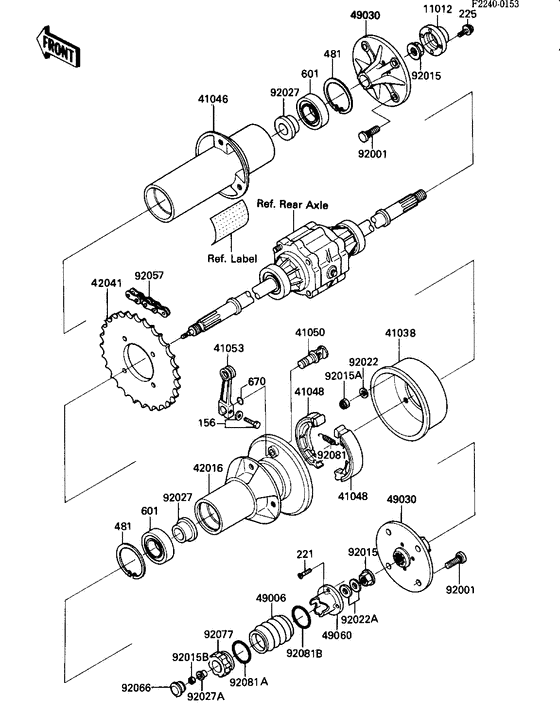

Rear hub/brake/chain ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
156
|
156
156G0622 BOLT-WP |
156G0622 |
US $25 |
||
|
221
|
221
221B0516 SCREW-CSK-CROS,5X16 |
221B0516 |
US $2.41 |
||
| replacement | |||||
|
221
|
221
221AA0516 SCREW-CSK-CROS,5X16 |
221AA0516 |
from US $0.78 |
||
|
225
|
225
225B0520 SCREW-PAN-WSP-CROS |
225B0520 |
US $0.45 |
||
| replacement | |||||
|
225
|
225
225AA0520 SCREW-PAN-WSP-CROS |
225AA0520 |
from US $0.62 |
||
|
481
|
481
481J6800 CIRCRIP-TYPE-C,68MMCircrip-type-c,68mm; |
481J6800 |
US $9.78 |
||
|
601
|
601
601A600800
New Genuine Part
|
601A600800 |
— | ||
|
670
|
670
670B2015 O RING,15MM"o" ring,15mm; |
670B2015 |
from US $1.77 |
||
|
11012
|
11012
11012-4005 CAP |
11012-4005 |
US $4.54 |
||
|
41038
|
41038
41038-4017 DRUM,HUB-RRDrum,hub-rr; |
41038-4017 |
US $53.05 |
||
|
41046
|
41046
41046-4009 HOUSING,BEARINGHousing,bearing; |
41046-4009 |
US $74.45 |
||
|
41048
|
41048
41048-1068 SHOE-BRAKE |
41048-1068 |
from US $50.40 |
||
|
41050
|
41050
41050-1002 CAM SHAFT,BRAKECam shaft,brake; |
41050-1002 |
US $39.10 |
||
|
41053
|
41053
41053-1022 LEVER BRAKE CAM |
41053-1022 |
US $97.06 |
||
|
42016
|
42016
42016-4009 PANEL,RR BRAKEPanel,rr brake; |
42016-4009 |
US $107.71 |
||
|
42041
|
42041
42041-4008 SPROCKET-HUB,50TSprocket-hub,50t; |
42041-4008 |
US $102.62 |
||
|
49006
|
49006
49006-4005 BOOT |
49006-4005 |
US $10.73 |
||
|
49030
|
49030
49030-4011 RR-HUB,FORGEDRr-hub,forged; |
49030-4011 |
US $92.66 |
||
|
49060
|
49060
49060-4001 CAM |
49060-4001 |
US $53.55 |
||
|
92001
|
92001
92001-4006 BOLT,LUGBolt,lug; |
92001-4006 |
US $2.09 |
||
|
92015
|
92015
92015-4024 NUT,FLANGED&LOCK,18MMNut,flanged&lock,18mm; |
92015-4024 |
US $29.18 |
||
|
92015A
|
92015A
92015-1429 NUT,LOCK,10MMNut,10mm; |
92015-1429 |
from US $4.12 |
||
|
92015B
|
92015B
92019-014 NUT-LOCK,5MMNut-lock,5mm; |
92019-014 |
from US $3.01 |
||
|
92022
|
92022
92022-1453 WASHER,10.5X18X2.5Washer,10.5x18x2.5; |
92022-1453 |
US $3.69 |
||
|
92022A
|
92022A
92022-241
WASHER,PLAIN,5MM
Washer,plain,5mm; |
92022-241 |
— | ||
|
92027
|
92027
92027-4029 COLLAR,AXLECollar,axle; |
92027-4029 |
US $24.32 |
||
|
92027A
|
92027A
92027-4030 COLLAR |
92027-4030 |
US $5.24 |
||
|
92057
|
92057
92057-4011 CHAIN,EK520SH-0,98LChain,ek520sh-0,98l; |
92057-4011 |
US $386.32 |
||
|
92066
|
92066
92066-1027 PLUGPlug,frame end; |
92066-1027 |
US $5.45 |
||
| replacement | |||||
|
92066
|
92066
92066-1520 PLUGPlug,frame end; |
92066-1520 |
from US $3.96 |
||
|
92077
|
92077
92077-4002 KNOB |
92077-4002 |
US $3.60 |
||
|
92081
|
92081
42020-004 SPRING-BRAKE SHOESpring-brake shoe; |
42020-004 |
from US $6.18 |
||
|
92081A
|
92081A
92081-1177 SPRING |
92081-1177 |
from US $8.15 |
||
|
92081B
|
92081B
92081-1570 SPRING,L=141Spring,l=141; |
92081-1570 |
US $5.42 |
||
