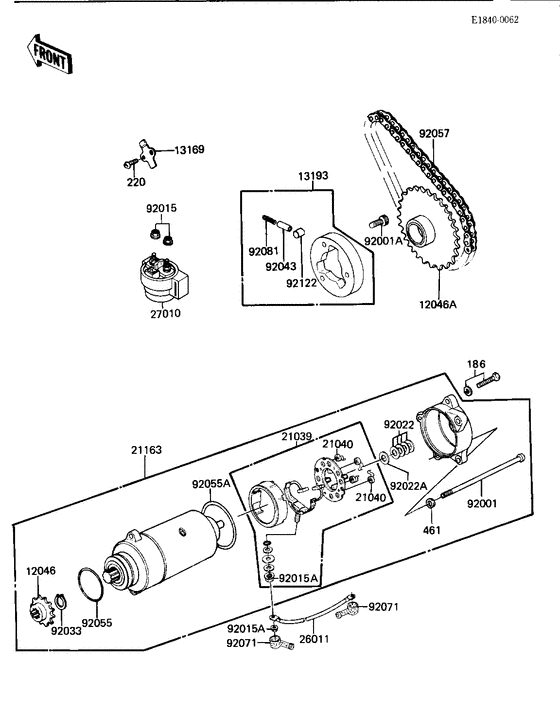

Starter motor/starter clutch ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
186
|
186
186G0625
BOLT-UPSET-WP
|
186G0625 |
— | ||
| replacement | |||||
|
186
|
186
186BA0625 BOLT-UPSET-WP |
186BA0625 |
from US $1.09 |
||
|
220
|
220
220B0614
SCREW-PAN-CROS,6X14
Screw pan head 6x14; |
220B0614 |
— | ||
| replacement | |||||
|
220
|
220
220AA0614 SCREW-PAN-CROS,6X14Screw pan head 6x14; |
220AA0614 |
from US $0.95 |
||
|
461
|
461
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
461
|
461
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
12046
|
12046
12046-1004 SPROCKET,STARTER MOTOSprocket,starter moto; |
12046-1004 |
US $46.44 |
||
|
12046A
|
12046A
12046-1107
SPROCKET,STARTER CLUT
Sprocket,starter clut; |
12046-1107 |
— | ||
|
13169
|
13169
13169-1010 PLATE |
13169-1010 |
US $4.52 |
||
|
13193
|
13193
13193-1002 CLUTCH ASSY,ONEWAYClutch assy,oneway; |
13193-1002 |
from US $79.14 |
||
|
21039
|
21039
21039-1053 BRUSH,CARBONBrush,carbon; |
21039-1053 |
from US $100.53 |
||
|
21040
|
21040
21040-1003 SPRING-BRUSH |
21040-1003 |
from US $7.13 |
||
|
21163
|
21163
21163-1036 STARTER, ELECTRIC |
21163-1036 |
US $430.20 |
||
| replacement | |||||
|
21163
|
21163
21163-1238 STARTER, ELECTRIC |
21163-1238 |
US $430.20 |
||
|
26011
|
26011
26011-1201 WIRE-LEAD,STARTER MOTWire-lead,starter mot; |
26011-1201 |
US $43.47 |
||
| replacement | |||||
|
26011
|
26011
26011-1709 WIRE-LEAD,STARTER MOTWire-lead,starter mot; |
26011-1709 |
from US $28.77 |
||
|
27010
|
27010
27010-1314 SWITCH,STARTERSwitch,starter; |
27010-1314 |
from US $50.81 |
||
|
92001
|
92001
92001-1046 SCREW,PAN HEAD,6X130Screw,pan head,6x130; |
92001-1046 |
US $8.10 |
||
|
92001A
|
92001A
120P0816 BOLT-SOCKETBolt; |
120P0816 |
US $1.74 |
||
| replacement | |||||
|
92001A
|
92001A
120CA0816 BOLT-SOCKETBolt; |
120CA0816 |
from US $1.27 |
||
|
92015
|
92015
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015
|
92015
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92015A
|
92015A
92015-1078
NUT,FLANGED,6MM
Nut-6mm; |
92015-1078 |
— | ||
| replacement | |||||
|
92015A
|
92015A
92210-0630 NUT,FLANGED,6MMNut-6mm; |
92210-0630 |
from US $0.95 |
||
|
92022
|
92022
21025011 WASHER,THRUST,0.2TWasher,thrust,0.2t; |
21025011 |
from US $4.28 |
||
|
92022A
|
92022A
92022-1132 WASHER,THRUST,0.8TWasher,thrust,0.8t; |
92022-1132 |
from US $3.48 |
||
|
92033
|
92033
92033-037 CIRCLIP,13M/MCirclip,13m/m; |
92033-037 |
from US $6.49 |
||
|
92043
|
92043
92043-132 PIN |
92043-132 |
from US $3.60 |
||
|
92055
|
92055
21027005 0 RING,42.8MM"0" ring,42.8mm; |
21027005 |
US $4.45 |
||
| replacement | |||||
|
92055
|
92055
92055-1313 RING-O"0" ring,42.8mm; |
92055-1313 |
from US $5.39 |
||
|
92055A
|
92055A
92055-1086 0 RING,STARTER MOTR"0" ring,starter motr; |
92055-1086 |
from US $6.34 |
||
|
92057
|
92057
92057-1009 CHAIN,DYNAMOChain,dynamo; |
92057-1009 |
from US $33.36 |
||
|
92071
|
92071
21017017 GROMMET,CORDGrommet,cord; |
21017017 |
from US $6.81 |
||
|
92081
|
92081
92081-159 SPRING,COILSpring,coil; |
92081-159 |
from US $2.74 |
||
|
92122
|
92122
92122006 ROLLER |
92122006 |
from US $3.48 |
||
