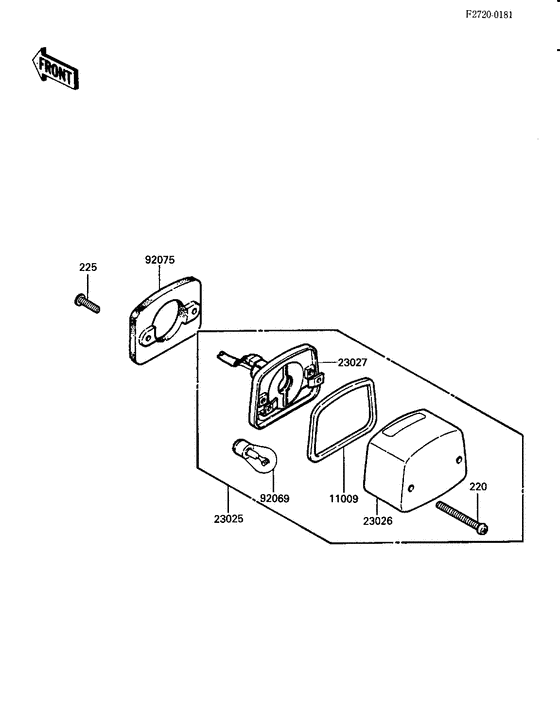

Taillight ('84 klt200-c2) Diagram Kawasaki KLT 200
- Model code
- KLT200-C2
- Engine Capacity
- 200
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
220
|
220
220B0330 SCREW-PAN-CROSS |
220B0330 |
from US $1.11 |
||
| replacement | |||||
|
220
|
220
220AA0330 SCREW-PAN-CROSS |
220AA0330 |
from US $0.79 |
||
|
225
|
225
225B0518 SCREW-PAN-WSP-CROS |
225B0518 |
US $25 |
||
|
11009
|
11009
23028-020 GASKET,TAIL LIGHTGasket,tail light; |
23028-020 |
US $7.69 |
||
|
23025
|
23025
23025-4001 LAMP,TAILLamp,tail; |
23025-4001 |
US $34.92 |
||
|
23026
|
23026
23026-040
LENS,TAIL LAMP
Lens,tail lamp; |
23026-040 |
— | ||
|
23027
|
23027
23027-044
CASE,TAIL LAMP
Case,tail lamp; |
23027-044 |
— | ||
|
92069
|
92069
92069-059 BULB,12V 32/3CPBulb,12v 32/3cp; |
92069-059 |
from US $5.70 |
||
|
92075
|
92075
92075-4014 DAMPER RUBBER |
92075-4014 |
US $8.24 |
||
