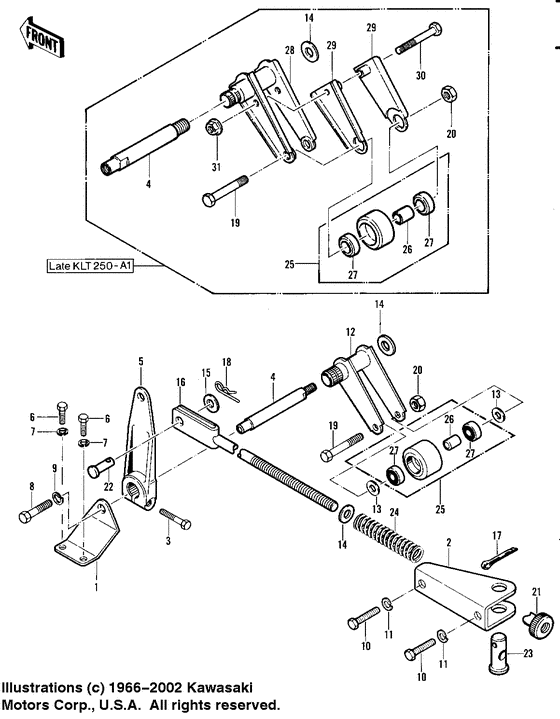

Chain tensioner ('82 a1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-A1
- Engine Capacity
- 250
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11034-4060 BRACKET,LEVER TENSIONBracket,lever tension; |
11034-4060 |
US $14.04 |
||
|
2
|
2
11034-4061 BRACKET,CHAIN ADJUSTBracket,chain adjust; |
11034-4061 |
US $30.80 |
||
|
3
|
3
115G0835 BOLT,SMALL UPSETBolt,small upset; |
115G0835 |
from US $1.58 |
||
| replacement | |||||
|
3
|
3
115BA0835 BOLT,SMALL UPSETBolt,small upset; |
115BA0835 |
from US $1.09 |
||
|
4
|
4
13107-4008
SHAFT,L=90
Shaft,l=90; |
13107-4008 |
— | ||
|
5
|
5
13168-5002 LEVER-ARM-TENSIONER S |
13168-5002 |
US $144.47 |
||
|
6
|
6
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
6
|
6
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
6
|
6
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
8
|
8
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
8
|
8
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
9
|
9
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
9
|
9
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
10
|
10
115G0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115G0818 |
US $1.58 |
||
| replacement | |||||
|
10
|
10
115BA0818 BOLT-SMALL-UPSET,8X18Bolt-small-upset,8x18; |
115BA0818 |
from US $0.94 |
||
|
11
|
11
461F0800
WASHER-SPRING,8MM
Washer spring 8mm; |
461F0800 |
— | ||
| replacement | |||||
|
11
|
11
461DA0800 WASHER-SPRING,8MMWasher spring 8mm; |
461DA0800 |
from US $0.48 |
||
|
12
|
12
13168-5002 LEVER-ARM-TENSIONER S |
13168-5002 |
US $144.47 |
||
|
13
|
13
411B0800
WASHER PLAIN 8MM
Washer plain 8mm; |
411B0800 |
— | ||
| replacement | |||||
|
13
|
13
411AA0800 WASHER-PLAINWasher plain 8mm; |
411AA0800 |
from US $0.72 |
||
|
14
|
14
411B1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411B1000 |
from US $1.26 |
||
| replacement | |||||
|
14
|
14
411AA1000 WASHER-PLAIN,10MMWasher plain 10mm; |
411AA1000 |
from US $0.72 |
||
|
15
|
15
411B1200 WASHER PLAIN 12MMWasher plain 12mm; |
411B1200 |
from US $1.26 |
||
| replacement | |||||
|
15
|
15
411AA1200 WASHER-PLAIN,12MMWasher plain 12mm; |
411AA1200 |
from US $0.63 |
||
|
16
|
16
46102-4001 ROD,CHAIN TENSIONERRod,chain tensioner; |
46102-4001 |
US $32.60 |
||
|
17
|
17
550D3230 PIN,COTTERPin,cotter; |
550D3230 |
US $1.67 |
||
| replacement | |||||
|
17
|
17
550AA3230 PIN,COTTERPin,cotter; |
550AA3230 |
from US $0.94 |
||
|
18
|
18
554A1200 PIN,SNAP,12M/MPin,snap,12m/m; |
554A1200 |
from US $2.85 |
||
| replacement | |||||
|
18
|
18
554DA1200 PIN,SNAP,12M/MPin,snap,12m/m; |
554DA1200 |
from US $2.17 |
||
|
19
|
19
92001-4008 BOLT,HEX HEAD,8X45Bolt,hex head,8x45; |
92001-4008 |
US $4.99 |
||
|
20
|
20
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
21
|
21
92015-4008 NUT,BRAKE ROD ADJUSTGNut,brake rod adjustg; |
92015-4008 |
US $12.44 |
||
|
22
|
22
92043-4004 PIN,12X22Pin,12x22; |
92043-4004 |
US $7.38 |
||
|
23
|
23
92043-4005 PIN,18X33Pin,18x33; |
92043-4005 |
US $15.39 |
||
|
24
|
24
92081-1287 SPRING,14X20Spring,14x20; |
92081-1287 |
US $5.42 |
||
|
25
|
25
92122-4004
ROLLER,CHAIN ADJUST
Roller,chain adjust; |
92122-4004 |
— | ||
|
26
|
26
92027-4007
SPACER,CHN GDE ROLLER
Spacer,chn gde roller; |
92027-4007 |
— | ||
|
27
|
27
92045-1009 BEARING,BALLBearing,ball; |
92045-1009 |
from US $24.98 |
||
|
28
|
28
13168-5002 LEVER-ARM-TENSIONER SLate klt250-a1 |
13168-5002 |
US $144.47 |
||
|
29
|
29
12053-4002 GUIDE-CHAINLate klt250-a1 |
12053-4002 |
US $18.85 |
||
|
30
|
30
112G0645
BOLT-UPSET
Late klt250-a1 |
112G0645 |
— | ||
|
31
|
31
92019-008 NUTLate klt250-a1 |
92019-008 |
from US $2.53 |
||
