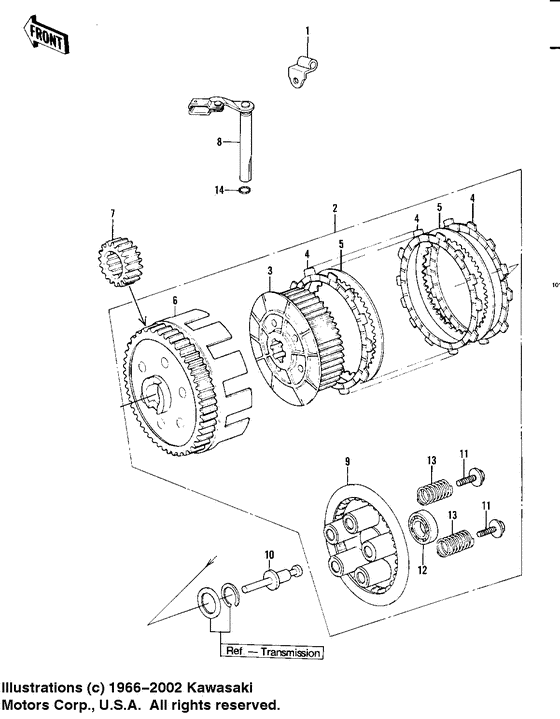

Clutch ('82 a1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-A1
- Engine Capacity
- 250
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11045-1081 BRACKET,CLUTCH CABLEBracket,clutch cable; |
11045-1081 |
from US $7.96 |
||
|
2
|
2
13081-1071 CLUTCH-ASSY |
13081-1071 |
US $452.39 |
||
|
3
|
3
13087-1001
HUB,CLUTCH
Hub,clutch; |
13087-1001 |
— | ||
|
4
|
4
13088-1008 PLATE-FRICTIONPlate,clutch friction; |
13088-1008 |
US $12.06 |
||
| replacement | |||||
|
4
|
4
13088-1057 PLATE-FRICTIONPlate,clutch friction; |
13088-1057 |
from US $15.71 |
||
|
5
|
5
13089-013 PLATE CLUTCH STEELPlate clutch steel; |
13089-013 |
from US $11.09 |
||
|
6
|
6
13095-1032 HOUSING-COMP-CLUTCH |
13095-1032 |
US $318.37 |
||
|
7
|
7
13097-1039 GEAR-PRIMARY,19TGear-primary,19t; |
13097-1039 |
US $58.66 |
||
|
8
|
8
13102-1011 RELEASE,CLUTCHRelease,clutch; |
13102-1011 |
US $46.44 |
||
|
9
|
9
13187-1008 PLATE-CLUTCH OPERATINPlate-clutch operatin; |
13187-1008 |
US $72.25 |
||
| replacement | |||||
|
9
|
9
13187-1059 PLATE-CLUTCH OPERATINPlate-clutch operatin; |
13187-1059 |
from US $72.25 |
||
|
10
|
10
46102-1033 ROD,CLUTCH PUSHRod,clutch push; |
46102-1033 |
US $20.59 |
||
|
11
|
11
92001-1576 BOLT,6X20Bolt,clutch spring,6x; |
92001-1576 |
from US $3.96 |
||
| replacement | |||||
|
11
|
11
92153-1599 BOLT,6X20Bolt,clutch spring,6x; |
92153-1599 |
from US $0.79 |
||
|
12
|
12
92045-1235 BEARING-BALL (12X28X8) |
92045-1235 |
from US $16.42 |
||
|
13
|
13
9208108
New Genuine Part
|
9208108 |
— | ||
|
14
|
14
670B1509 O RING,9MM"o" ring,9mm; |
670B1509 |
from US $2.53 |
||
