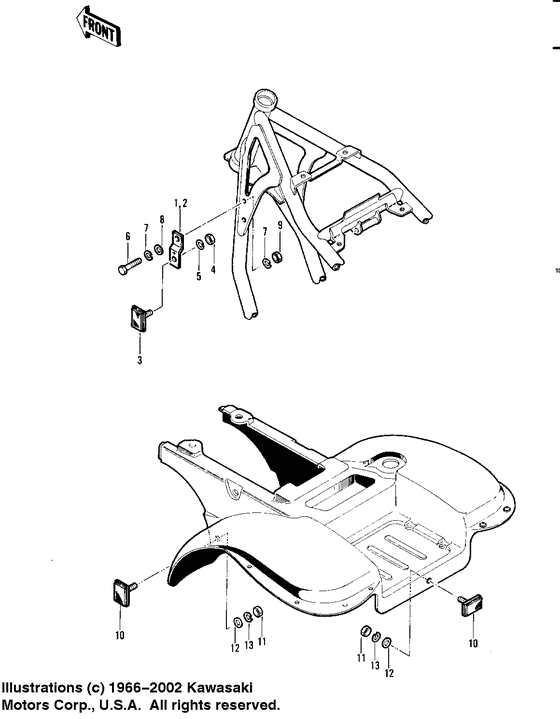

Reflectors (Canada; '82 a1) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-A1
- Engine Capacity
- 250
- Year
- 1982
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11034-4134
Bracket
Bracket,reflector (canada); |
11034-4134 |
— | ||
|
2
|
2
11034-4135
Bracket
Bracket,reflector (canada); |
11034-4135 |
— | ||
|
3
|
3
28012-1003 REFLECTOR,REFLEX(FRONReflector,reflex(fron; |
28012-1003 |
from US $15.68 |
||
|
4
|
4
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
4
|
4
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
5
|
5
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
5
|
5
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
|
6
|
6
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
6
|
6
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
7
|
7
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
7
|
7
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
8
|
8
411B0600 WASHER-PLAIN,6.5X13X1Washer plain 6mm; |
411B0600 |
US $1.90 |
||
| replacement | |||||
|
8
|
8
411AA0600 WASHER-PLAIN,(6.5x13x1)Washer plain 6mm; |
411AA0600 |
from US $2.13 |
||
|
9
|
9
311B0600
NUT-HEX,6MM
Nut 6mm; |
311B0600 |
— | ||
| replacement | |||||
|
9
|
9
311AA0600 NUT-HEX,6MMNut 6mm; |
311AA0600 |
from US $0.63 |
||
|
10
|
10
28012-1054
Reflector-reflex,rr
Reflector-reflex,rr; |
28012-1054 |
— | ||
| replacement | |||||
|
10
|
10
28012-1088 Reflector-reflexReflector-reflex,rr; |
28012-1088 |
from US $17.58 |
||
|
11
|
11
311B0500
NUT-HEX,5MM
Nut,5mm; |
311B0500 |
— | ||
| replacement | |||||
|
11
|
11
311AA0500 NUT-HEX,5MMNut,5mm; |
311AA0500 |
from US $0.78 |
||
|
12
|
12
411B0500
W-PLAIN-S
Washer plain 5mm; |
411B0500 |
— | ||
| replacements | |||||
|
12
|
12
411AA0500 WASHER-PLAIN,5MMWasher plain 5mm; |
411AA0500 |
from US $0.88 |
||
|
12
|
12
410AA0500 W-PLAIN-SWasher plain 5mm; |
410AA0500 |
from US $0.78 |
||
|
13
|
13
461F0500
WASHER-SPRING
Washer spring 5mm; |
461F0500 |
— | ||
| replacement | |||||
|
13
|
13
461DA0500 WASHER-SPRINGWasher spring 5mm; |
461DA0500 |
from US $0.48 |
||
