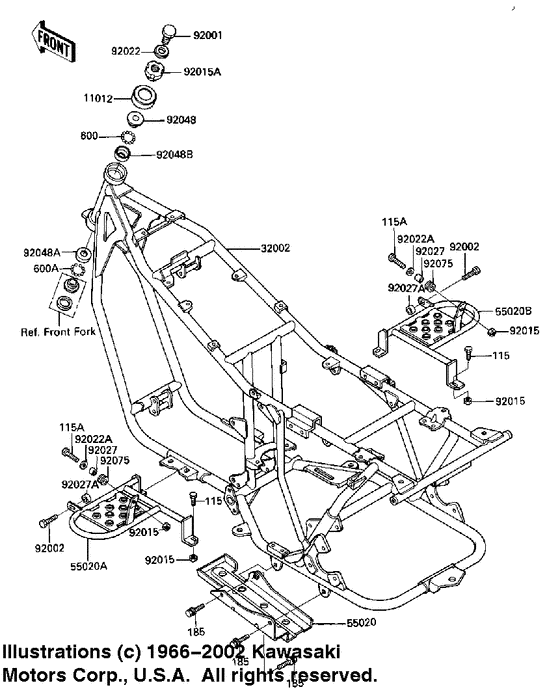

Frame ('84-'85 c2/c3) Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-C3
- Engine Capacity
- 250
- Year
- 1985
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
115
|
115
115G0816
BOLT-SMALL-UPSET,8X16
Bolt-small-upset,8x16; |
115G0816 |
— | ||
| replacement | |||||
|
115
|
115
115BA0816 BOLT-SMALL-UPSETBolt-small-upset,8x16; |
115BA0816 |
from US $0.86 |
||
|
115A
|
115A
115G0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115G0825 |
US $1.43 |
||
| replacement | |||||
|
115A
|
115A
115BA0825 BOLT-SMALL-UPSET,8X25Bolt-small-upset 8x25; |
115BA0825 |
from US $1.11 |
||
|
185
|
185
185B0820 BOLT-UPSET-WSP-SMALL |
185B0820 |
US $0.72 |
||
| replacement | |||||
|
185
|
185
185AA0820 BOLT-UPSET-WSP-SMALL |
185AA0820 |
US $0.75 |
||
|
600
|
600
600A0600 BALL STEEL 3/16'Ball steel 3/16'; |
600A0600 |
from US $0.79 |
||
|
600A
|
600A
600A0800 BALL,6.35MMBall steel 1/4'; |
600A0800 |
from US $0.91 |
||
|
11012
|
11012
46098-012 CAP,STEERING STEMCap,steering stem; |
46098-012 |
US $6.59 |
||
|
32002
|
32002
32002-4018
FRAME
|
32002-4018 |
— | ||
|
55020
|
55020
55020-1161 GUARD,CHAIN CASEGuard,chain case; |
55020-1161 |
US $56.27 |
||
|
55020A
|
55020A
55020-4039 GUARD,FOOTREST,LHGuard,footrest,lh; |
55020-4039 |
US $51.46 |
||
|
55020B
|
55020B
55020-4040 GUARD,FOOTREST,RHGuard,footrest,rh; |
55020-4040 |
US $53.55 |
||
|
92001
|
92001
44041-072
BOLT,STEERING STEM
Bolt,steering stem; |
44041-072 |
— | ||
|
92002
|
92002
92002-1191 BOLT,10X25Bolt,10x25; |
92002-1191 |
US $3.11 |
||
|
92015
|
92015
92015-1124 NUT,LOCK,8MMNut,lock,8mm; |
92015-1124 |
from US $3.17 |
||
|
92015A
|
92015A
92015-4007 NUT,STEERING STEMNut,steering stem; |
92015-4007 |
US $21.11 |
||
|
92022
|
92022
44043-056 WASHER,STEERING STEMWasher,steering stem; |
44043-056 |
US $12.10 |
||
|
92022A
|
92022A
92022-1561 WASHER,8.5X20X1.6Washer,8.5x20x1.6; |
92022-1561 |
from US $2.69 |
||
|
92027
|
92027
92027-280 COLLAR |
92027-280 |
US $1.12 |
||
|
92027A
|
92027A
92027-4036 COLLAR,STEP-HOLDERCollar,step-holder; |
92027-4036 |
US $0.68 |
||
|
92048
|
92048
92047-014 CONE,STRG STM BRG,UPCone,strg stm brg,up; |
92047-014 |
from US $10.61 |
||
| replacement | |||||
|
92048
|
92048
92048-0035 Race,steering Stem BeCone,strg stm brg,up; |
92048-0035 |
from US $10.61 |
||
|
92048A
|
92048A
92048-005 RACE STEERING BEARINGRace steering bearing; |
92048-005 |
from US $10.77 |
||
|
92048B
|
92048B
92048-009 RACE,STRG STM BEARINGRace,strg stm bearing; |
92048-009 |
from US $11.88 |
||
| replacement | |||||
|
92048B
|
92048B
92048-0038 Race,steering Stem BeRace,strg stm bearing; |
92048-0038 |
from US $11.88 |
||
|
92075
|
92075
92075-303 DAMPER,SADDLEBAGDamper,saddlebag; |
92075-303 |
US $0.92 |
||
