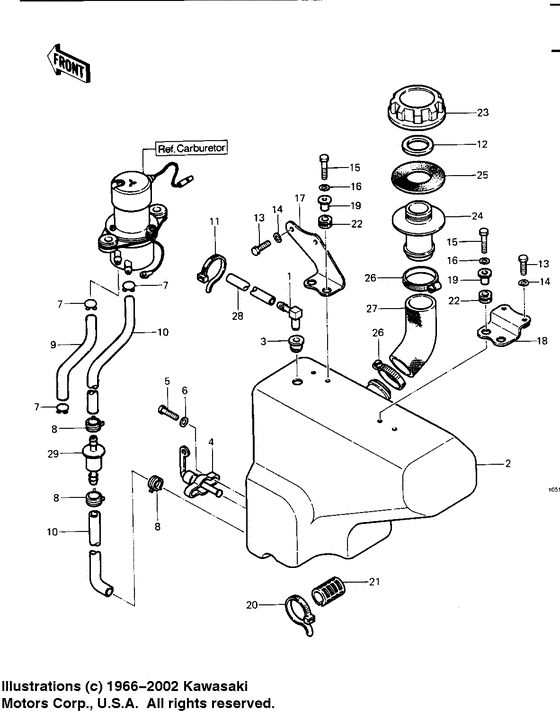

Fuel tank Diagram Kawasaki KLT 250 Prairie 250
- Model code
- KLT250-P1
- Engine Capacity
- 250
- Year
- 1984
- Sales region
- USA
- Stroke (2-stroke or 4-stroke)
- 4 stroke
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14069003 BREATHER |
14069003 |
from US $7.92 |
||
|
2
|
2
51001-4005-8L
TANK-FUEL,GRAY
Tank-fuel,gray; |
51001-4005-8L |
— | ||
|
3
|
3
92075-4029
DAMPER,FUEL TANK
Damper,fuel tank; |
92075-4029 |
— | ||
|
4
|
4
51023-1115
TAP-ASSY-FUEL
Tap-assy-fuel; |
51023-1115 |
— | ||
|
5
|
5
92001-114
BOLT-HEX HEAD,6X16
Bolt-hex head,6x16; |
92001-114 |
— | ||
|
6
|
6
92022-183 WASHER-PLAINWasher-plain; |
92022-183 |
from US $2.53 |
||
|
7
|
7
92037-1682 CLAMP,TUBEClamp,tube; |
92037-1682 |
from US $3.27 |
||
|
8
|
8
92037-4009 CLAMP |
92037-4009 |
US $0.36 |
||
|
9
|
9
92059-4030
TUBE,5.3X10.5X450
Tube,5.3x10.5x450; |
92059-4030 |
— | ||
|
10
|
10
92059-4029 TUBE,5.3X10.5X85Tube,5.3x10.5x85; |
92059-4029 |
US $2.81 |
||
|
11
|
11
92072-4004 BAND |
92072-4004 |
US $2.30 |
||
|
12
|
12
11009-3020 GASKET,FUEL TANK CAPGasket,fuel tank cap; |
11009-3020 |
from US $10.14 |
||
|
13
|
13
112B0614
BOLT-UPSET
Bolt-upset 6x14; |
112B0614 |
— | ||
| replacements | |||||
|
13
|
13
112AA0614 BOLT-UPSETBolt-upset 6x14; |
112AA0614 |
from US $0.82 |
||
|
13
|
13
112BA0614 BOLT-UPSETBolt-upset 6x14; |
112BA0614 |
from US $1.43 |
||
|
14
|
14
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
14
|
14
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
15
|
15
112G0620
BOLT-UPSET
Bolt-upset,6x20; |
112G0620 |
— | ||
| replacement | |||||
|
15
|
15
112BA0620 BOLT-UPSETBolt-upset,6x20; |
112BA0620 |
from US $0.95 |
||
|
16
|
16
461F0600
WASHER-SPRING,6MM
Washer spring 6mm; |
461F0600 |
— | ||
| replacement | |||||
|
16
|
16
461DA0600 WASHER-SPRING,6MMWasher spring 6mm; |
461DA0600 |
from US $0.55 |
||
|
17
|
17
32052-4006 BRACKET-TANK |
32052-4006 |
US $7.45 |
||
|
18
|
18
32052-4007 BRACKET-TANK |
32052-4007 |
US $7.04 |
||
|
19
|
19
92027-1045 COLLAR |
92027-1045 |
from US $3.33 |
||
|
20
|
20
92072-3505
BAND
|
92072-3505 |
— | ||
|
21
|
21
92075-084 DAMPER RUBBERDamper rubber; |
92075-084 |
from US $5.28 |
||
|
22
|
22
92075-277 DAMPER RUBBERDamper rubber; |
92075-277 |
from US $3.60 |
||
|
23
|
23
51049-3001 CAP,FUEL TANKCap,fuel tank; |
51049-3001 |
from US $8.55 |
||
|
24
|
24
59231-3001 FILLER,FUEL TANKFiller,fuel tank; |
59231-3001 |
from US $13.15 |
||
|
25
|
25
92022-4024 WASHER-RUBBER |
92022-4024 |
US $2.52 |
||
|
26
|
26
92037-3009 HOSE CLAMPHose clamp; |
92037-3009 |
from US $4.69 |
||
|
27
|
27
92059-4013
TUBE,TANK
Tube,tank; |
92059-4013 |
— | ||
|
28
|
28
92059-4027 TUBE-BREATHER |
92059-4027 |
US $3.26 |
||
|
29
|
29
49019-4001 FILTER-FUEL |
49019-4001 |
US $6.26 |
||
